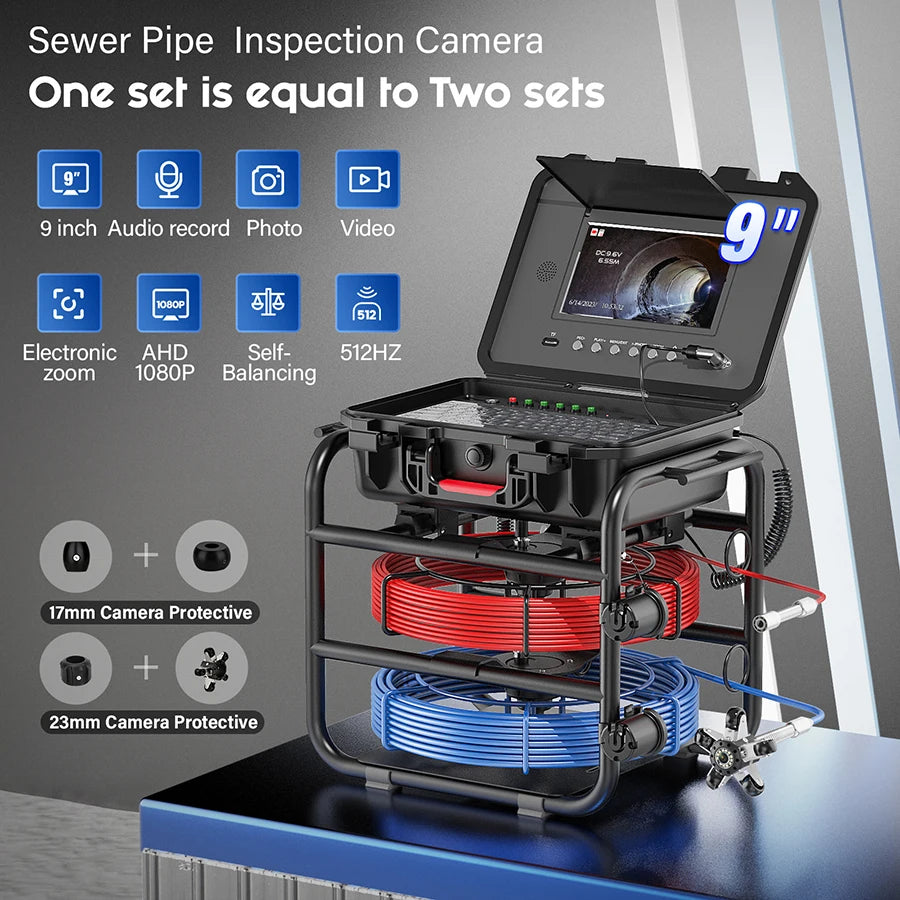

Sewer Pipe Inspection Camera 9Inch IPS with Dual Cameras/Cables and Self-Leveling 512HZ Locator Video+Audio Recording 5X Image Enlarge+Meter Counter

MAOTEWANG Compact Pipe Inspection Camera with Dual Cameras/Cables, With Meter Counter and Keyboard
We're delighted to introduce the new F5200 Dual Camera System to our range of drainage inspection equipment. Offering all the features of the F5100 but with an additional 70 x 5mm push-rod cable and fixed camera head, this versatile system is ideal for domestic and light commercial use in pipelines with a diameter between 25mm and 200mm.

512HZ TRANSMITTER:
This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground. （Locator Receiver is NOT included）

Video + Audio + 5X Image Enlarge:

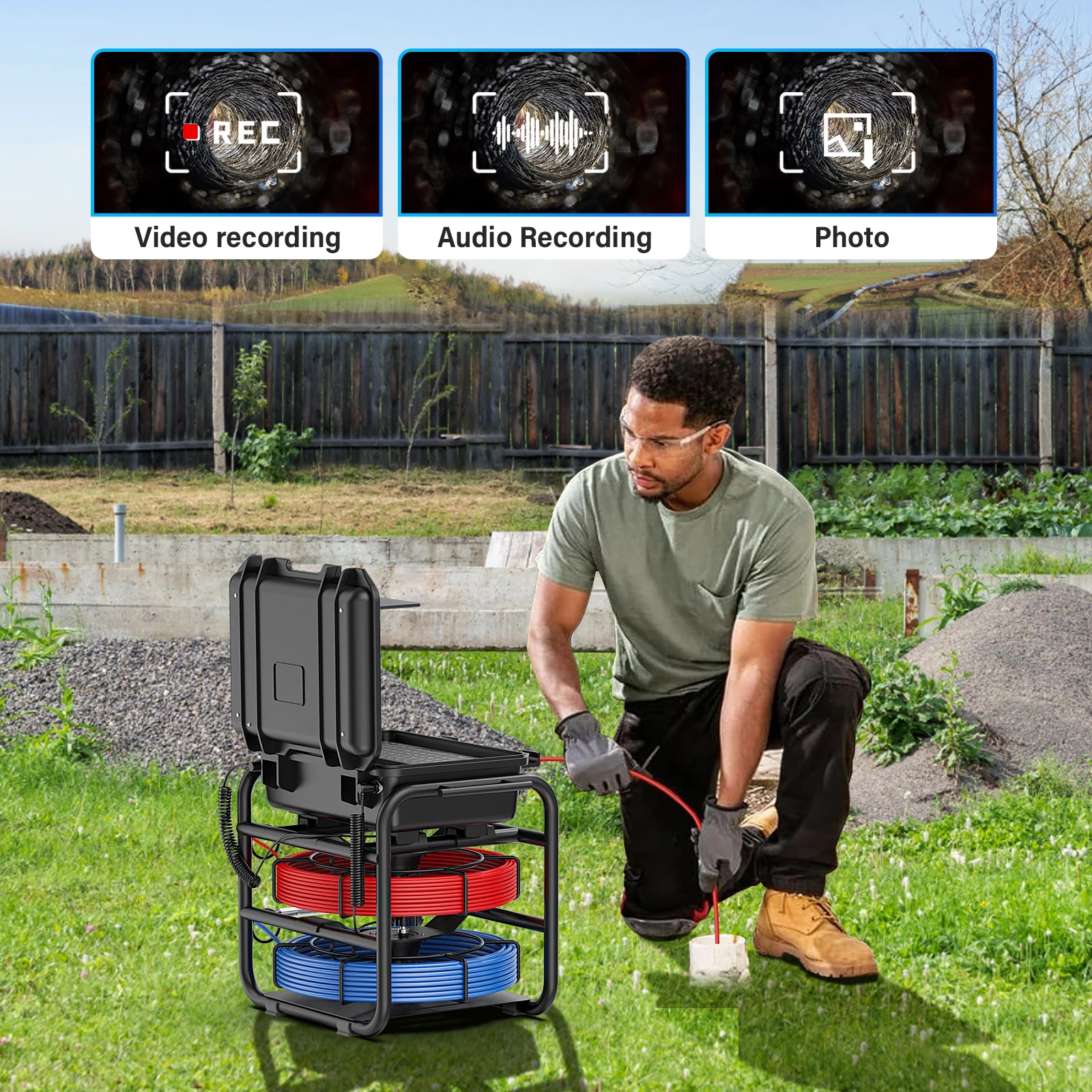

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :MP4 Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

MONITOR&CABLE：

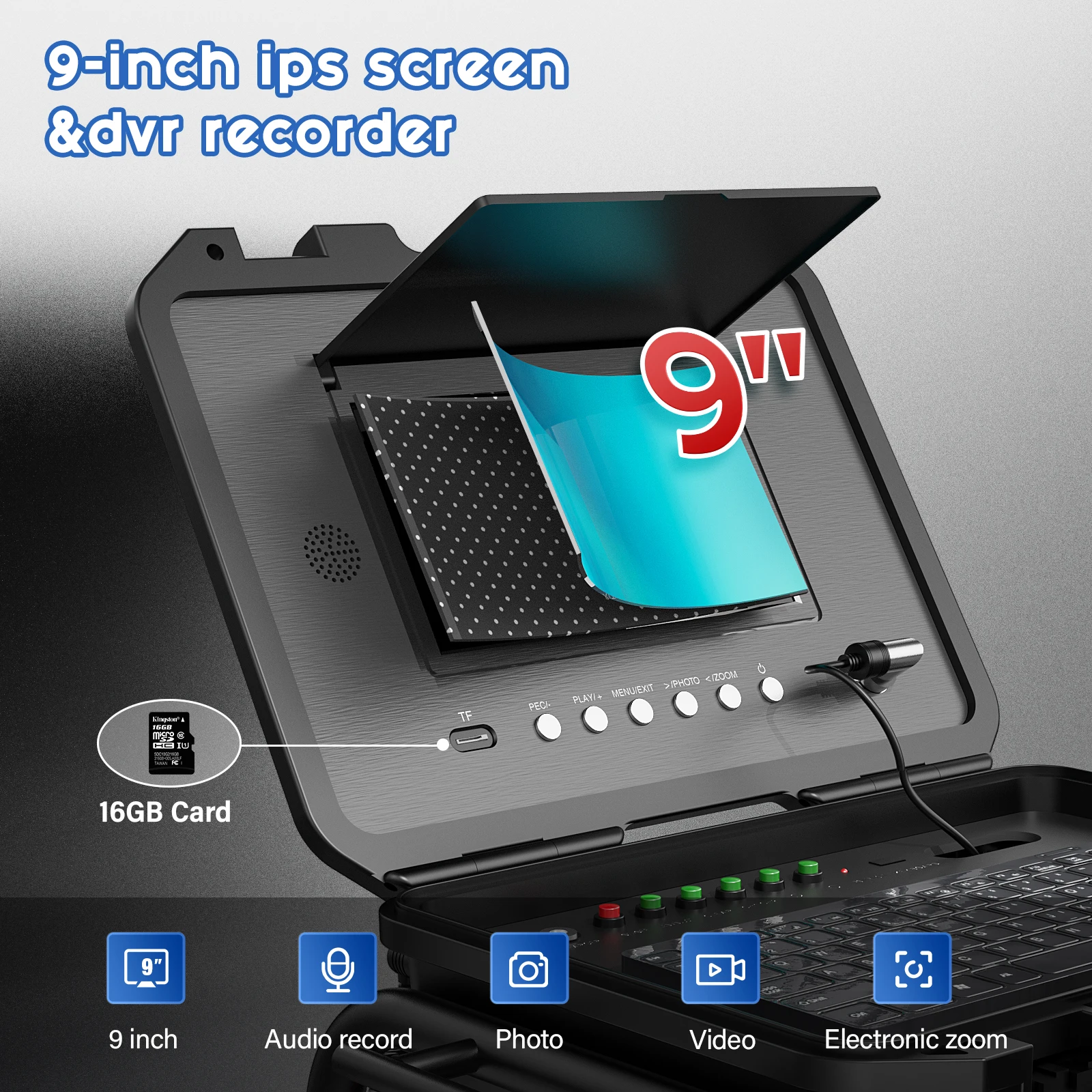

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inches color IPS LCD monitor with a sun-visor for outdoor inspections. The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.


DVR Recording Function：
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB SD card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :MP4 Photo format :JPG)

PORTABLE CARRY CASE&LONG BATTERY：
Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.

Applications:
Blocked / slow draining plumbing.
Wall / wire inspection.
Home owners inspection.

Item: parameter

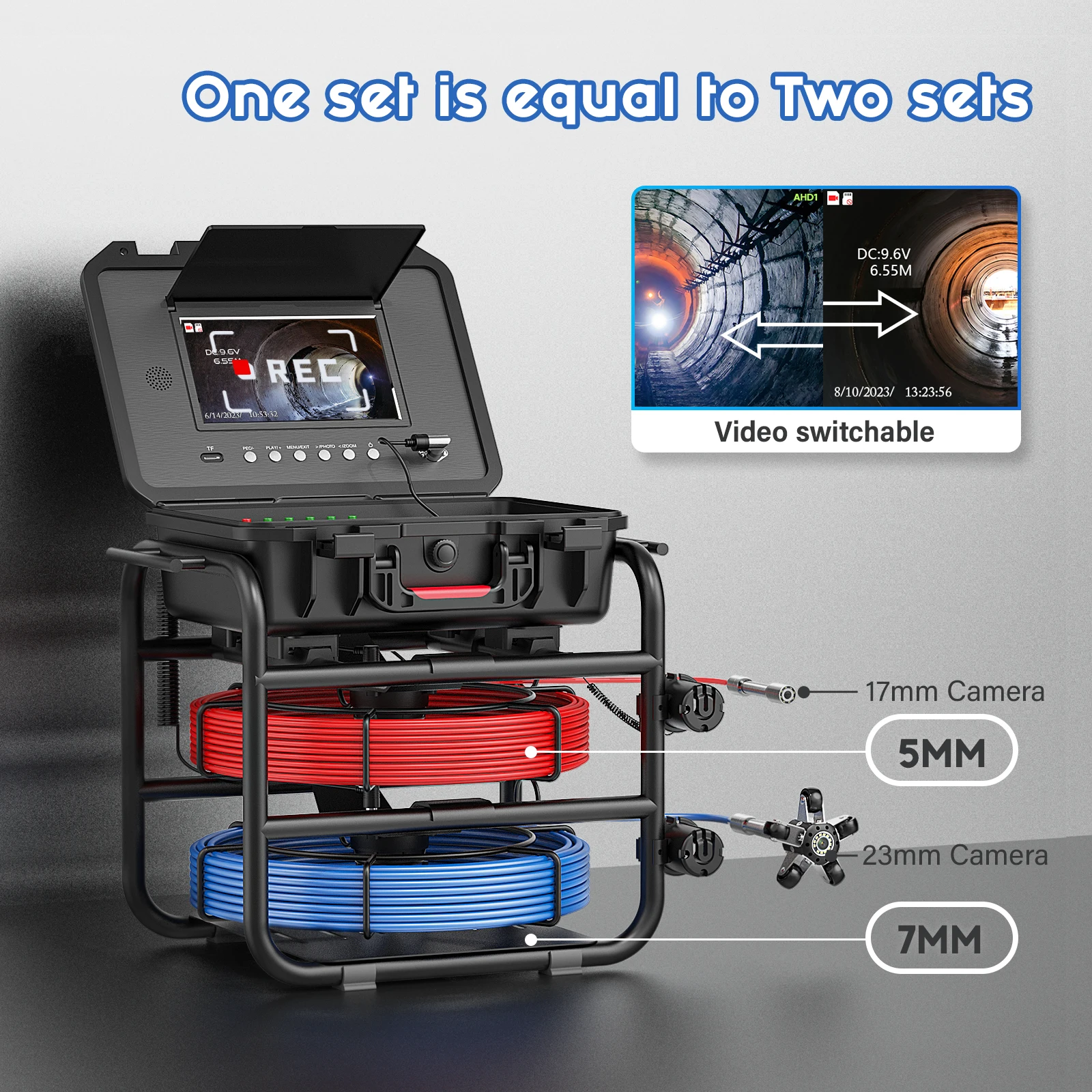

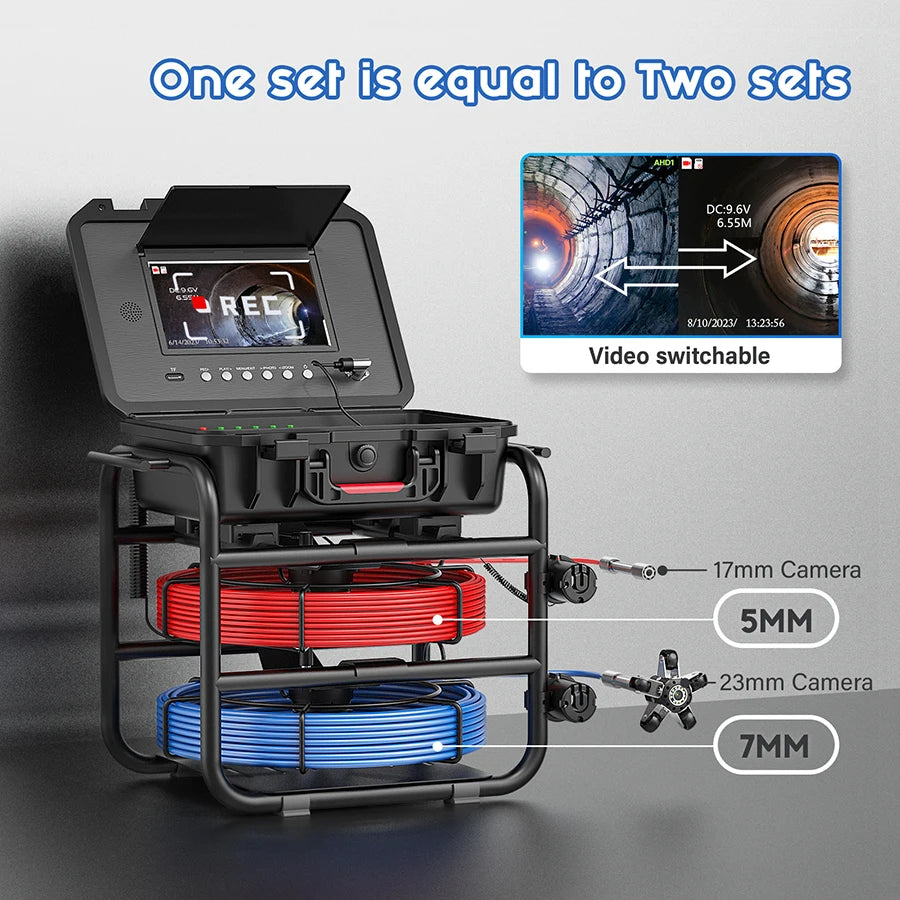

1. Monitor:9 inch IPS color record monitor with sun-visor for bright environment outside (CH1/CH2 Video Switch)

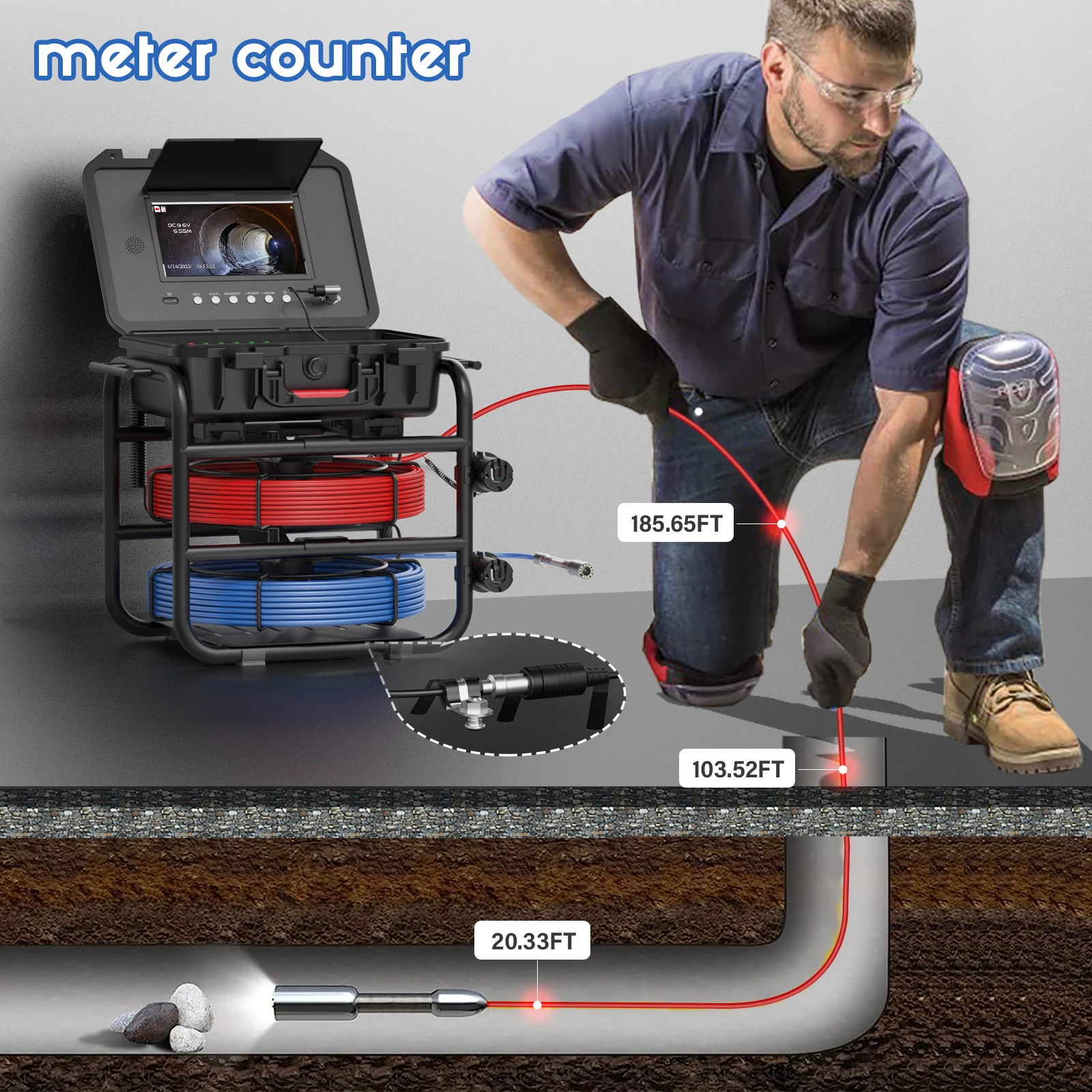

2. Function:Video record/audio/photo/electronic zoom/power display/ meter counter/keyboard input (support English)
3. TF Card: Memory Support maximum 128G TF card(16G TF card included)

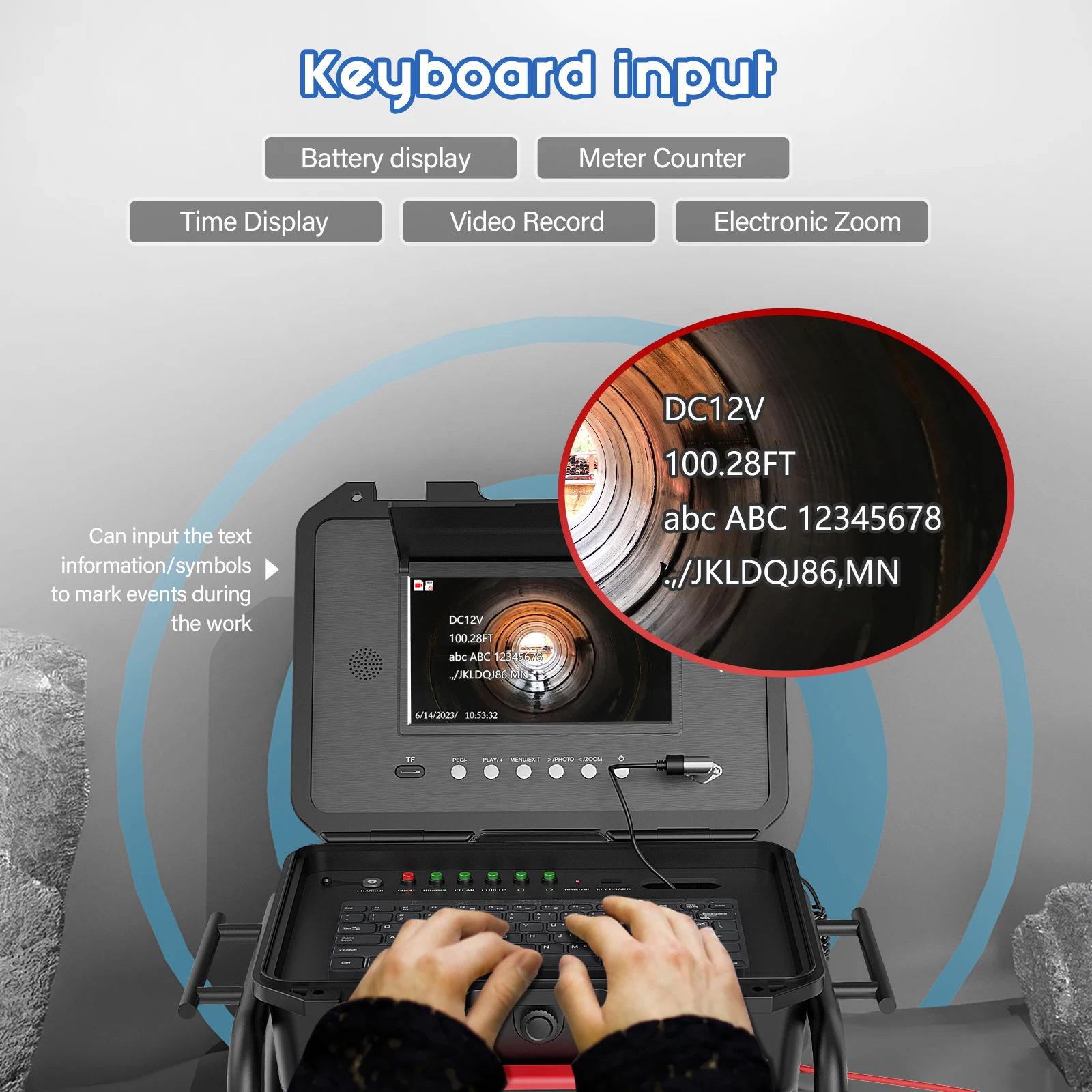

4. Keyboard input (USB Port)
5. Camera Sensor :CMOS Resolution: AHD 1080P

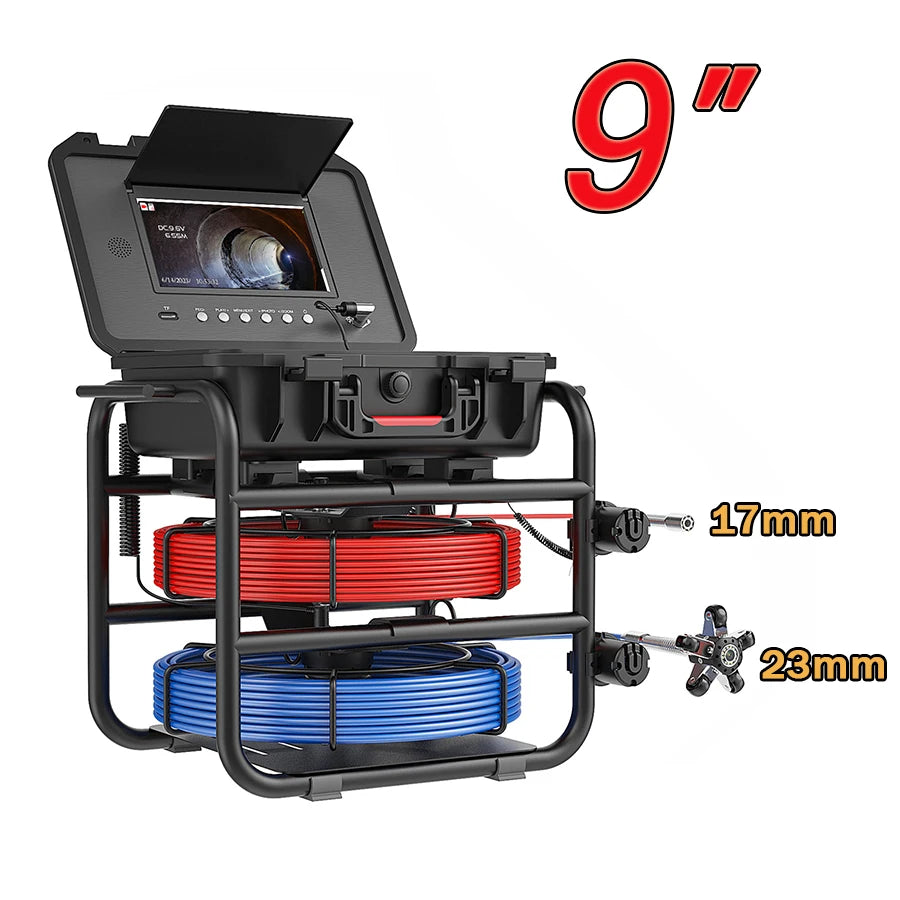

6. Camera Diameter：17mm and 23mm(With Self-Leveling 512hz)
7. Cable :Depth/Material: 5mm diameter (20m - 70M fiber tube optional); 7mm diameter (20-40m fiber tube optional)
8. LED: White LED（Brightness can be adjustable）
9. Angle: 145 degree
10. Lens Mirror Material : Sapphire

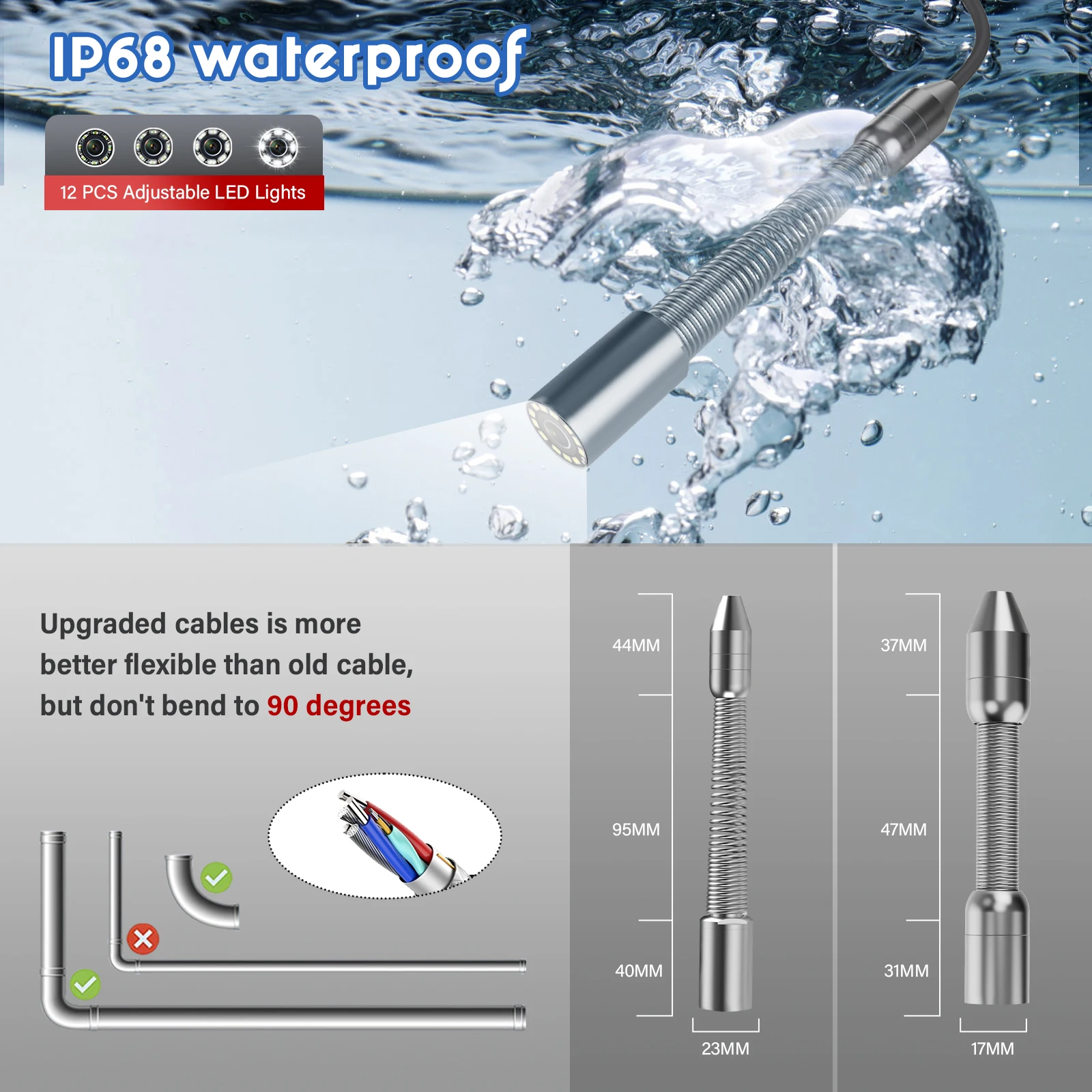

11. Camera Material: stainless steel/ IP68 Waterproof
12. Charger: AC100-240V DC12.6V
13. Battery: Luminal-cell arrester 12V 4.5AH
14. continuous use time for battery: approximate 8h

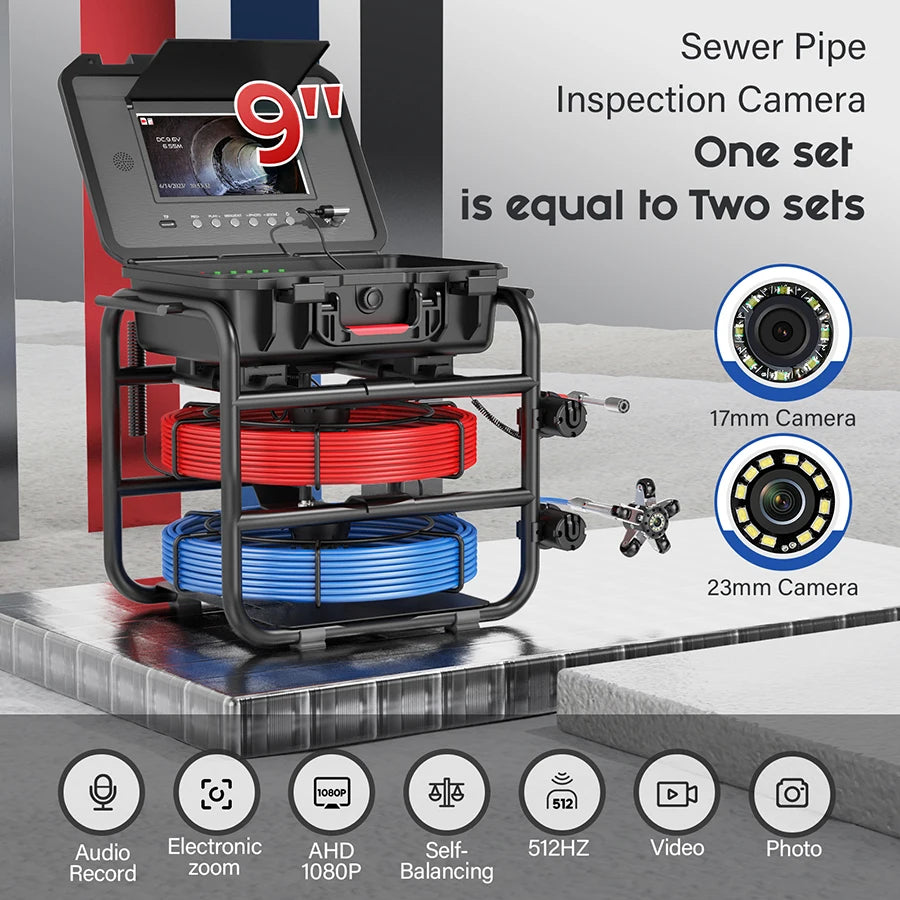

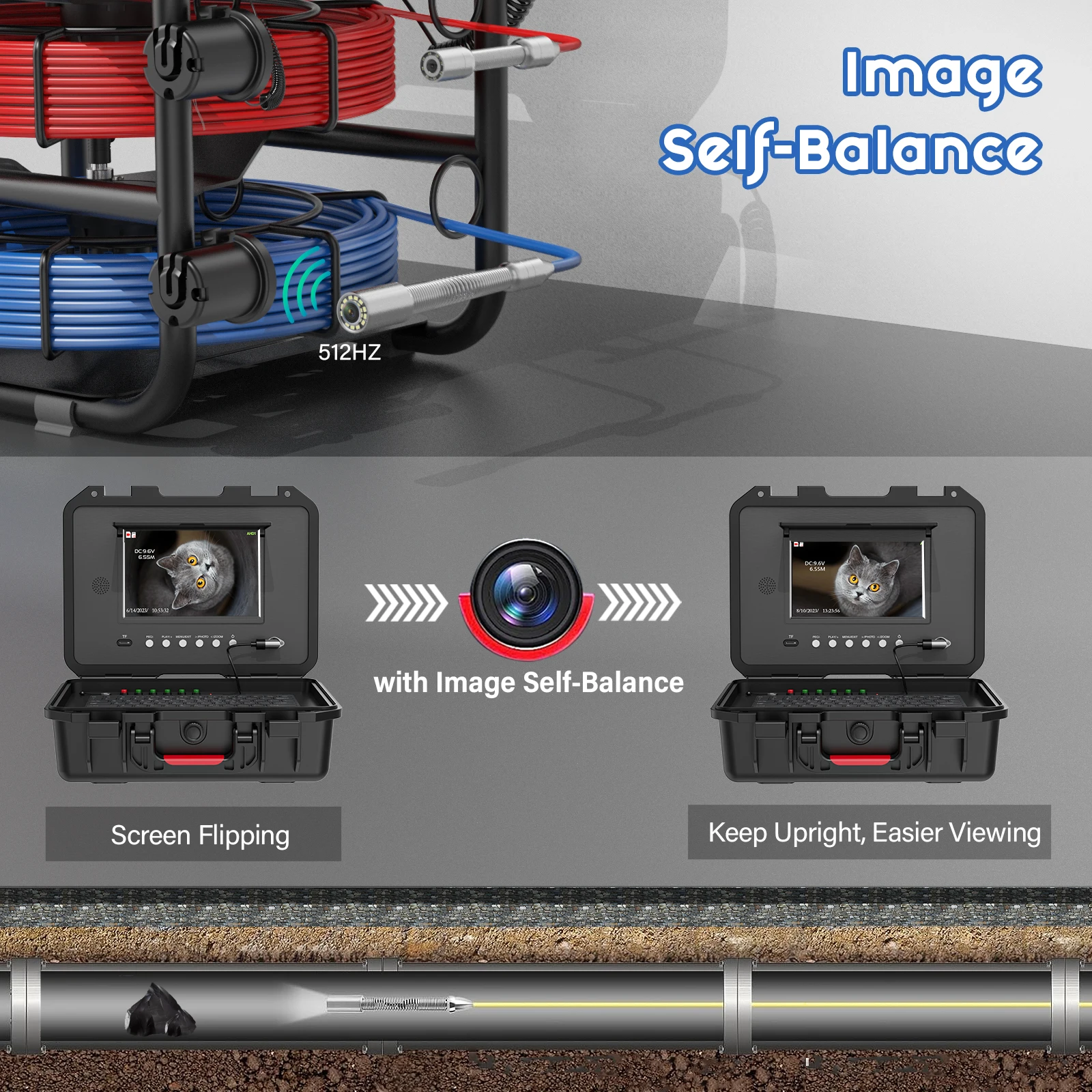

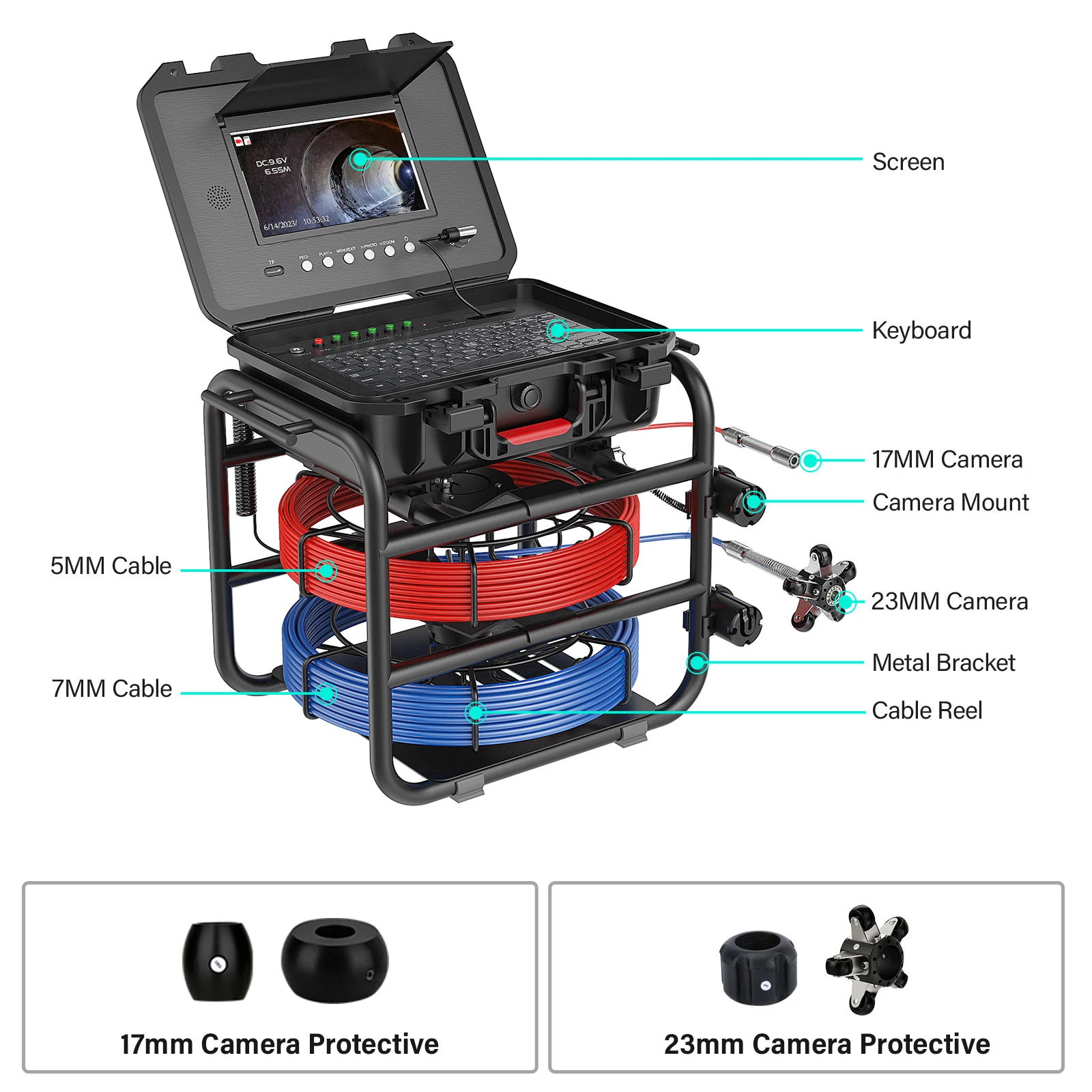

23MM Camera(With Self-Leveling 512hz):
camera size/material: 23MM* 40MM /stainless steel
camera protective cover parts size/material:38MM* 28MM /plastic-steel
camera protective cover parts size/material:99MM* 45MM /plastic-steel with wheel

17MM Camera:
camera size/material: 17MM*31MM /stainless steel
camera protective cover parts size/material:A:(25MM* 28MM /plastic-steel)B:(50MM* 28MM /plastic-steel)

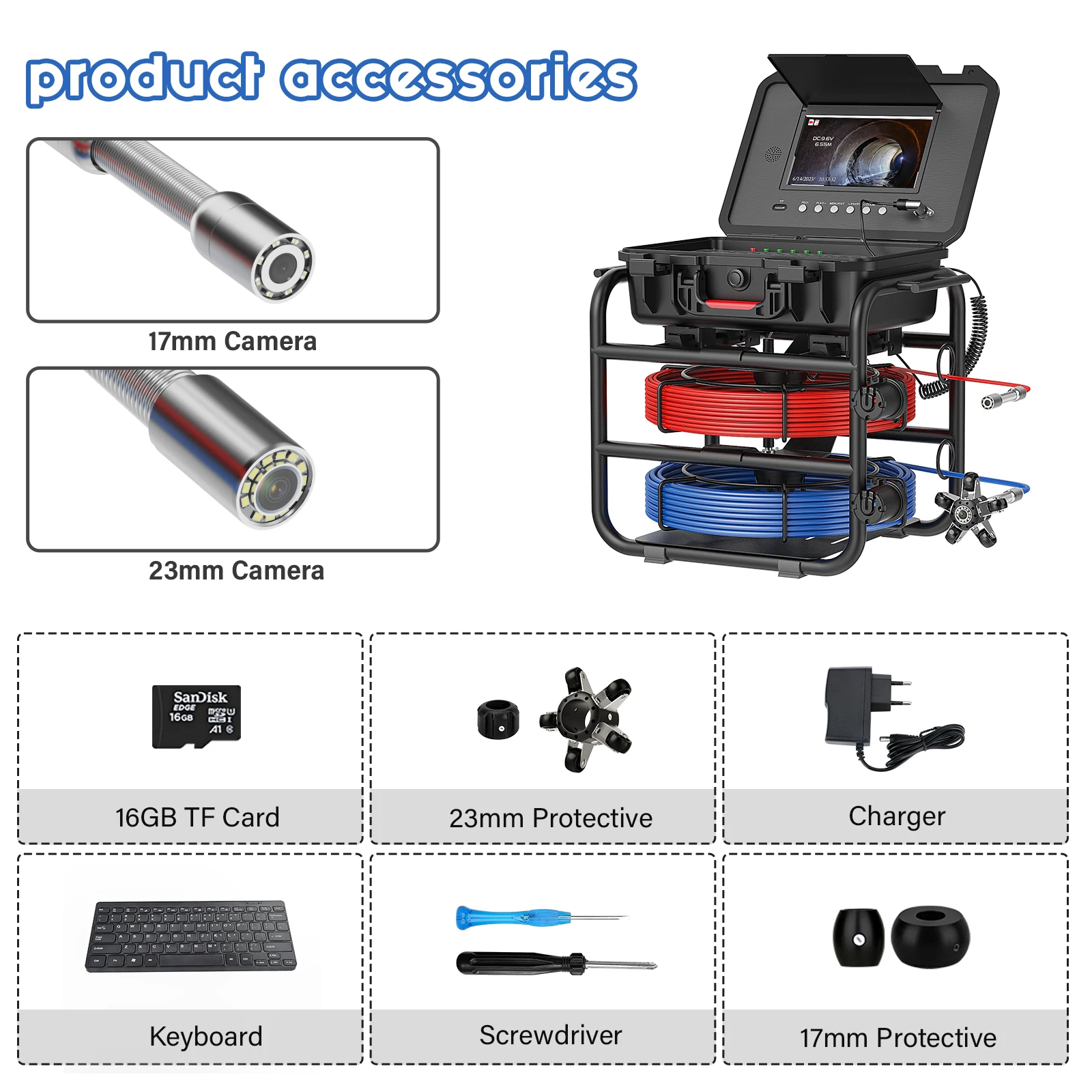

Package List:
1 * 9inch IPS Monitor（DVR)
1 * 23mm Camera (AHD 1080P Auto Self Leveling )
1 * 17mm Camera (AHD 1080P )
1 * 16GB TF Card
1 * 70M-5MM Fiberglass Cable
1 * 40M-7MM Fiberglass Cable
2 * 17MM Camera Proof Cover
2 * 23MM Camera Proof Cover
1 * 4500mah Battery Box
1 * Charger
2 * Connection Cable
2 * Screw Driver
