SPECIFICATIONS

203045103 Model: MAOTEWANG

Battery: Built in 12V4500mA li-ion battery inside ,support uint working more than 6 hours

Brand Name: MAOTEWANG

Camera: AHD 1080P 360 degree rotation camera head, Pan 360°

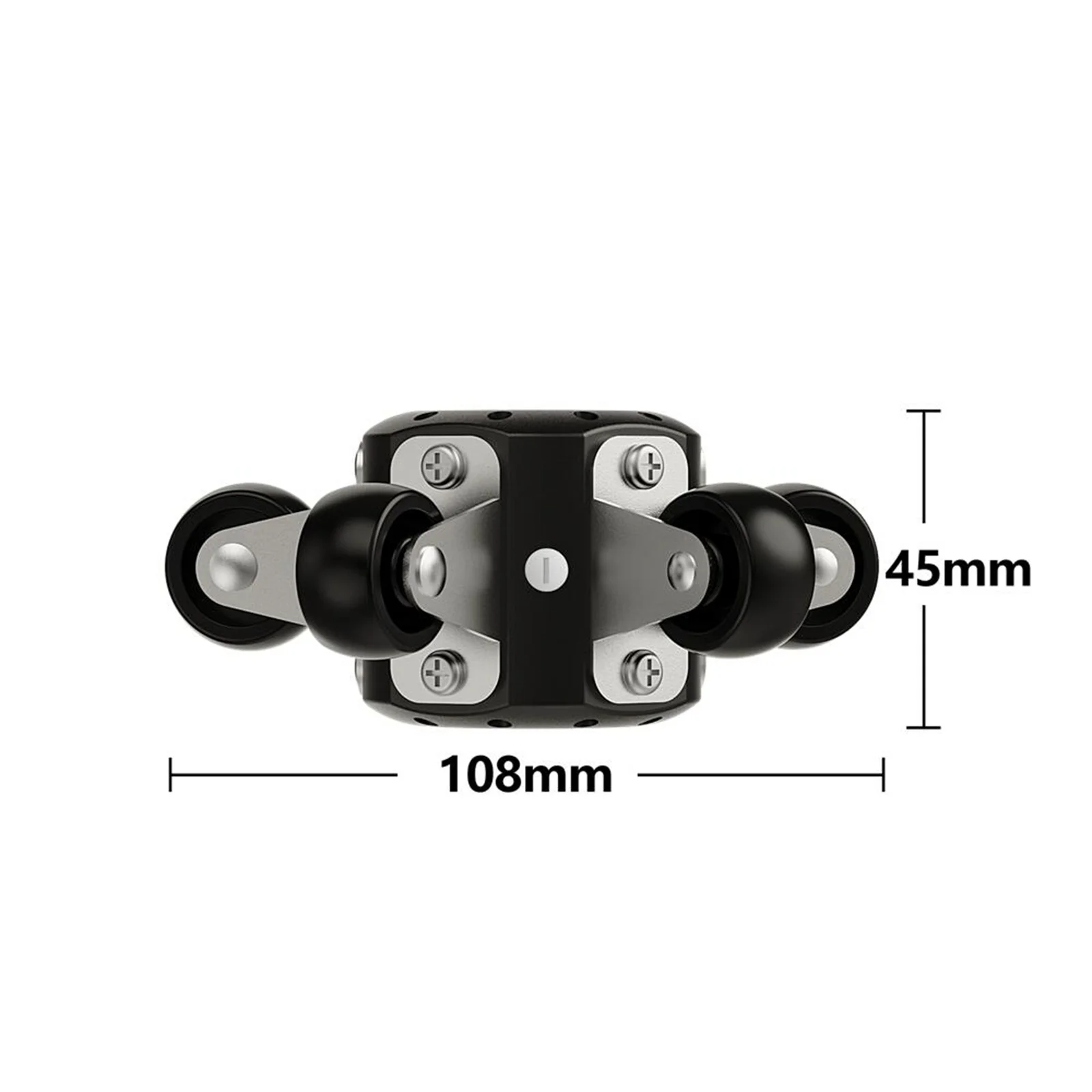

Camera Skids: 45MM* 108MM /plastic-steel

Camera size/material: 32MM* 120MM /stainless steel

Camera viewing angle: 145°

Charger: AC100-240V DC12.6V

Continuous use time for battery: approximate 8h

Equipment is suitable: 150MM or above diameter pipe

Focus distance: 10CM

High-concerned chemical: None

Keyboard input: USB Port

Material: fiber tube with /high intensity

Model: F820DJKBLC32-7C

Model Number: F820DJKBLC32-7C

Monitor: 10 inch IPS color record monitor with sun-visor for bright environment outside ,1024*600 resolution

Origin: Mainland China

Screen Type: 4.3inch

TF Card: Memory Support maximum 128G TF card(16G TF card included)

Transmitter: Built in 512hz

Waterproof: P68

investigation depth: 50/80/100M( selectable line length)

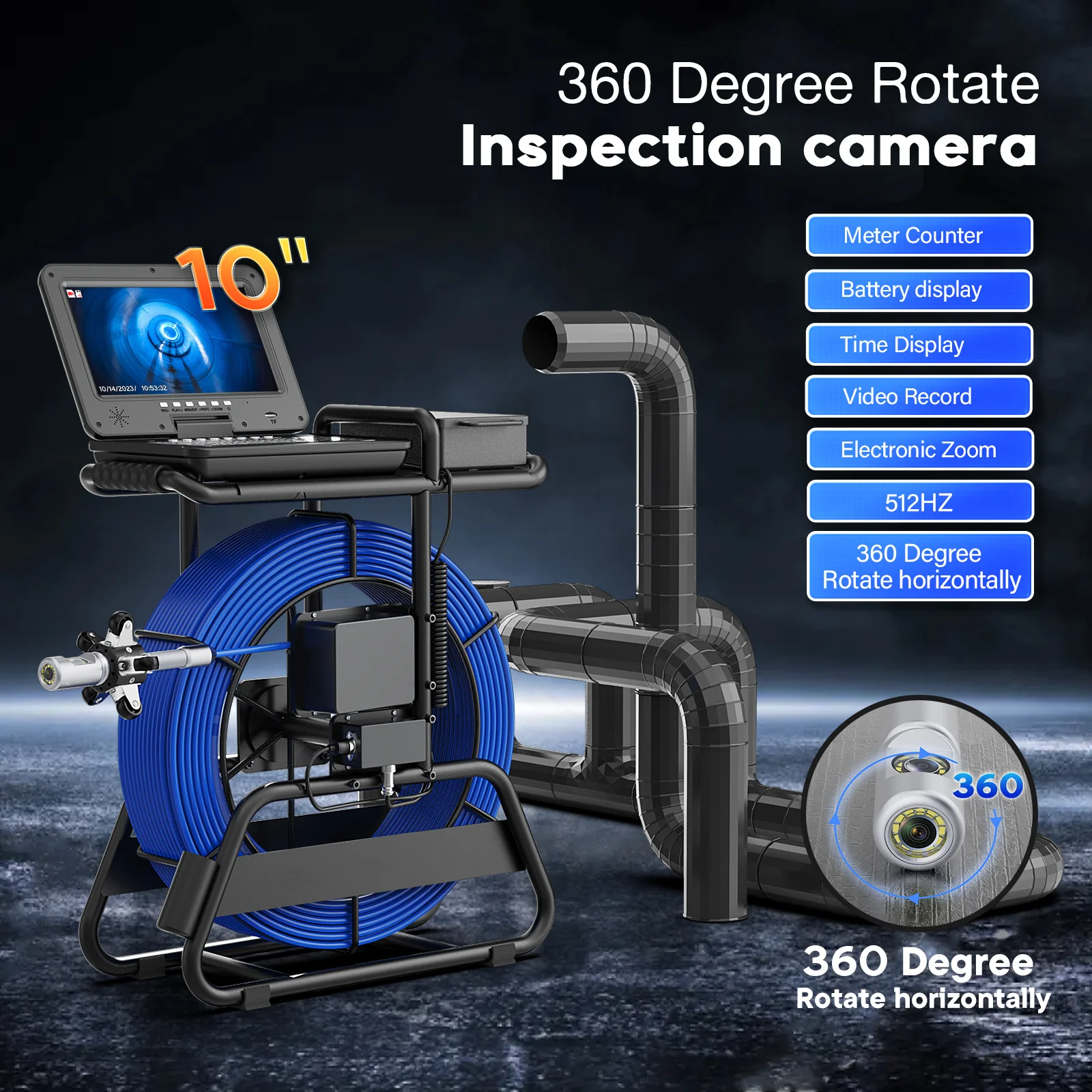

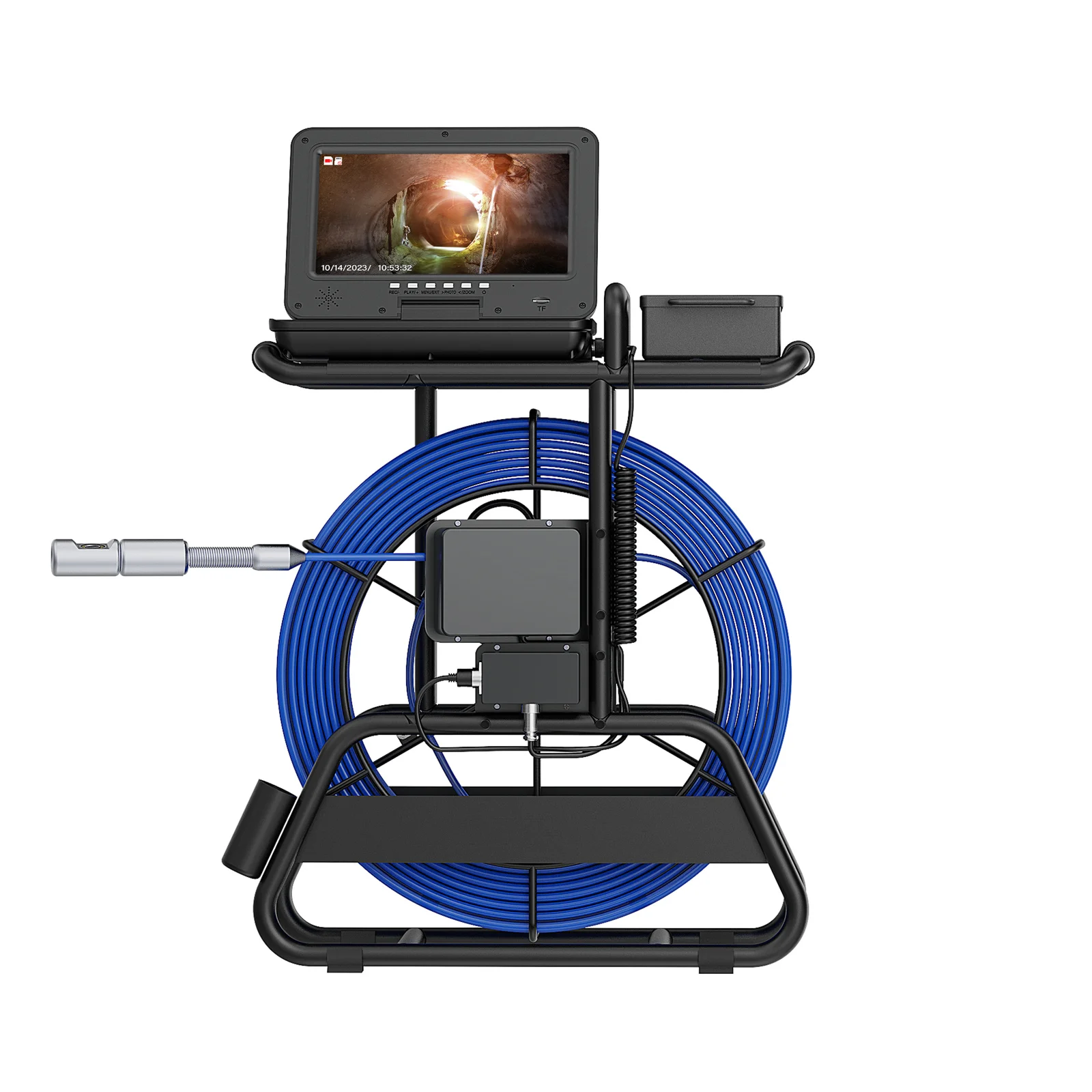

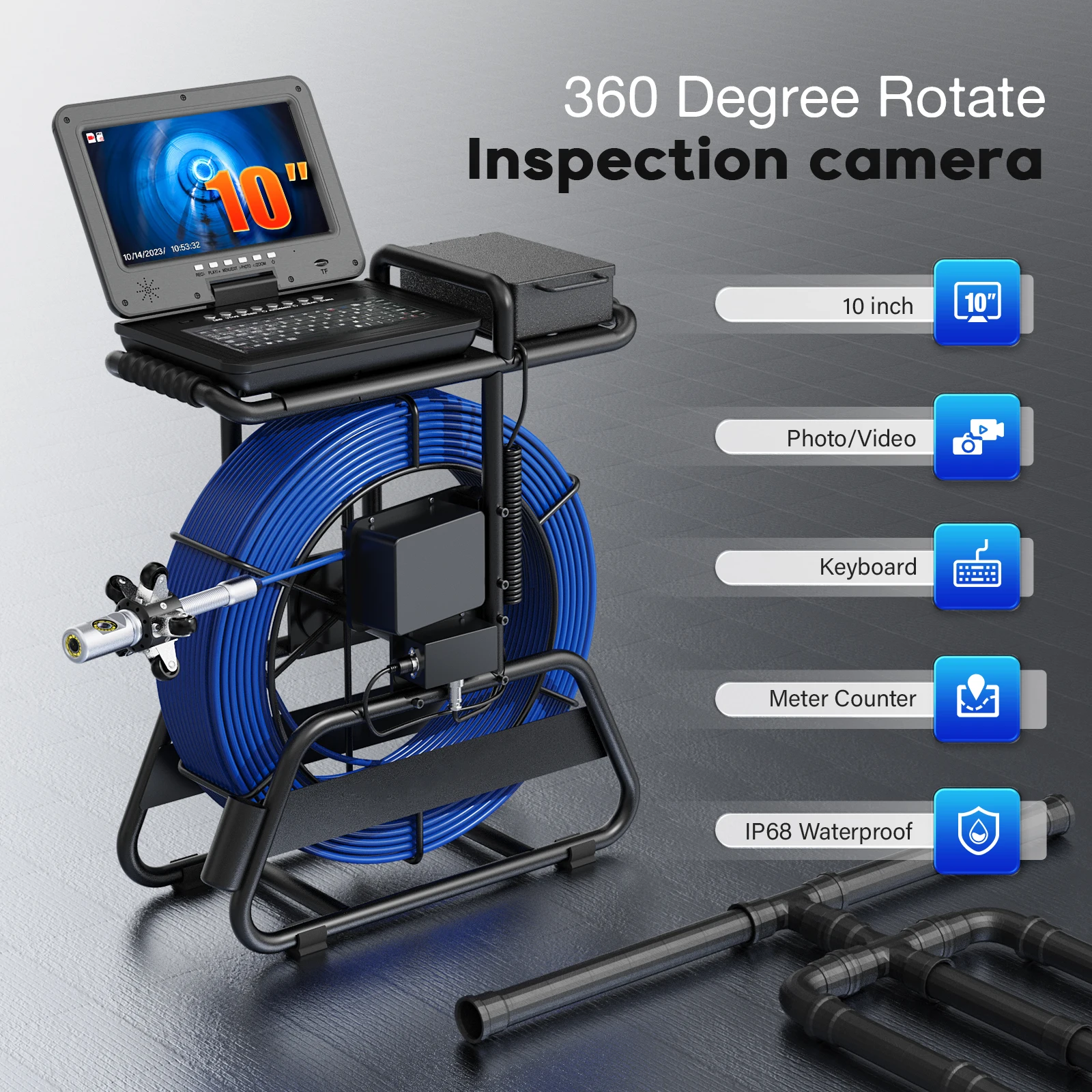

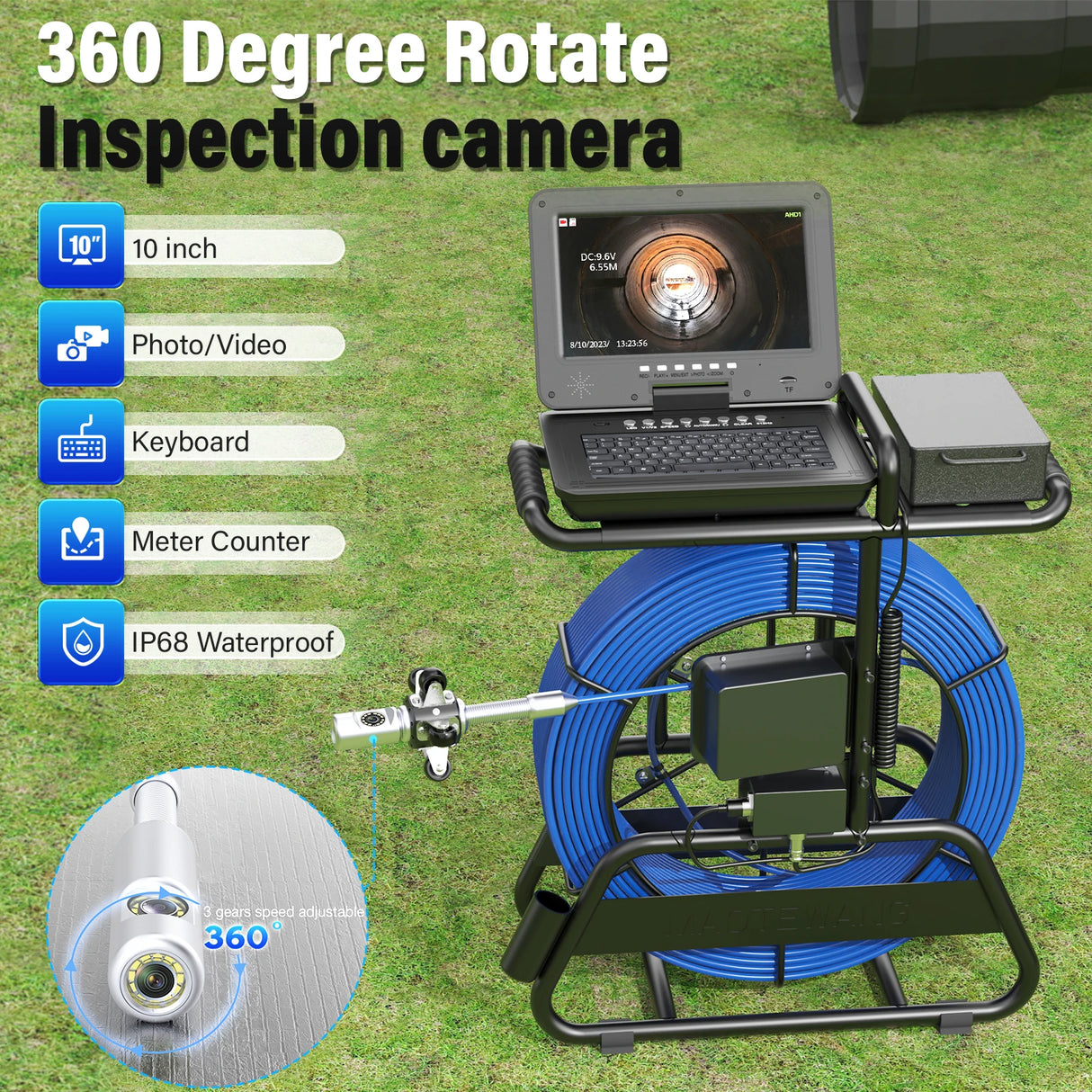

50M/80M/100M Sewer Camera Inspection 360 degrees 10″inch IPS+Cable diameter ø7mm+512HZ Transmitter Locator+Meter Counter+Keyboard

Item: parameter

1. Monitor:10 inch IPS color record monitor with sun-visor for bright environment outside ,1024*600 resolution

2. TF Card: Memory Support maximum 128G TF card(16G TF card included)

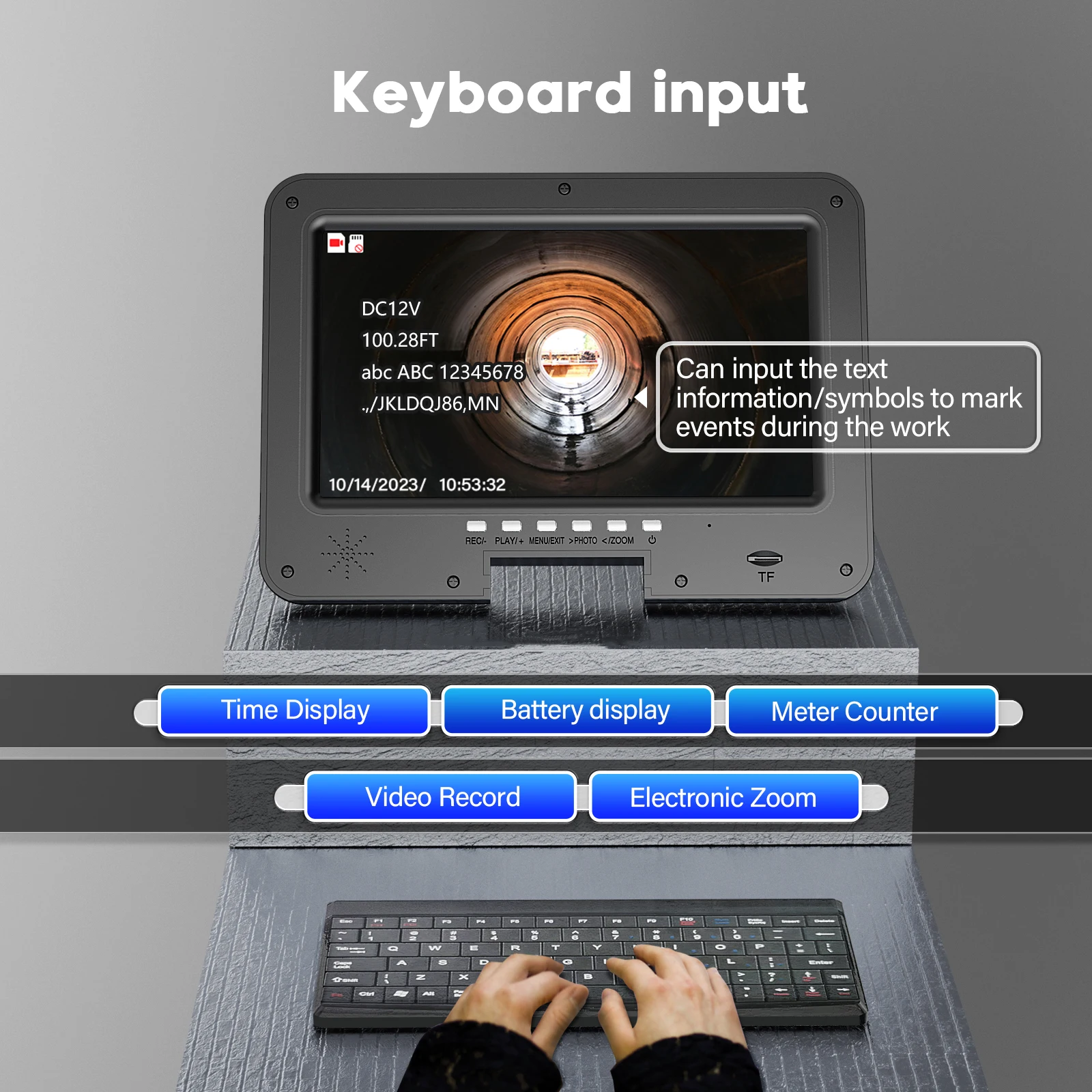

3. Keyboard input (USB Port)

4.512hz:Built in 512hz transmitter

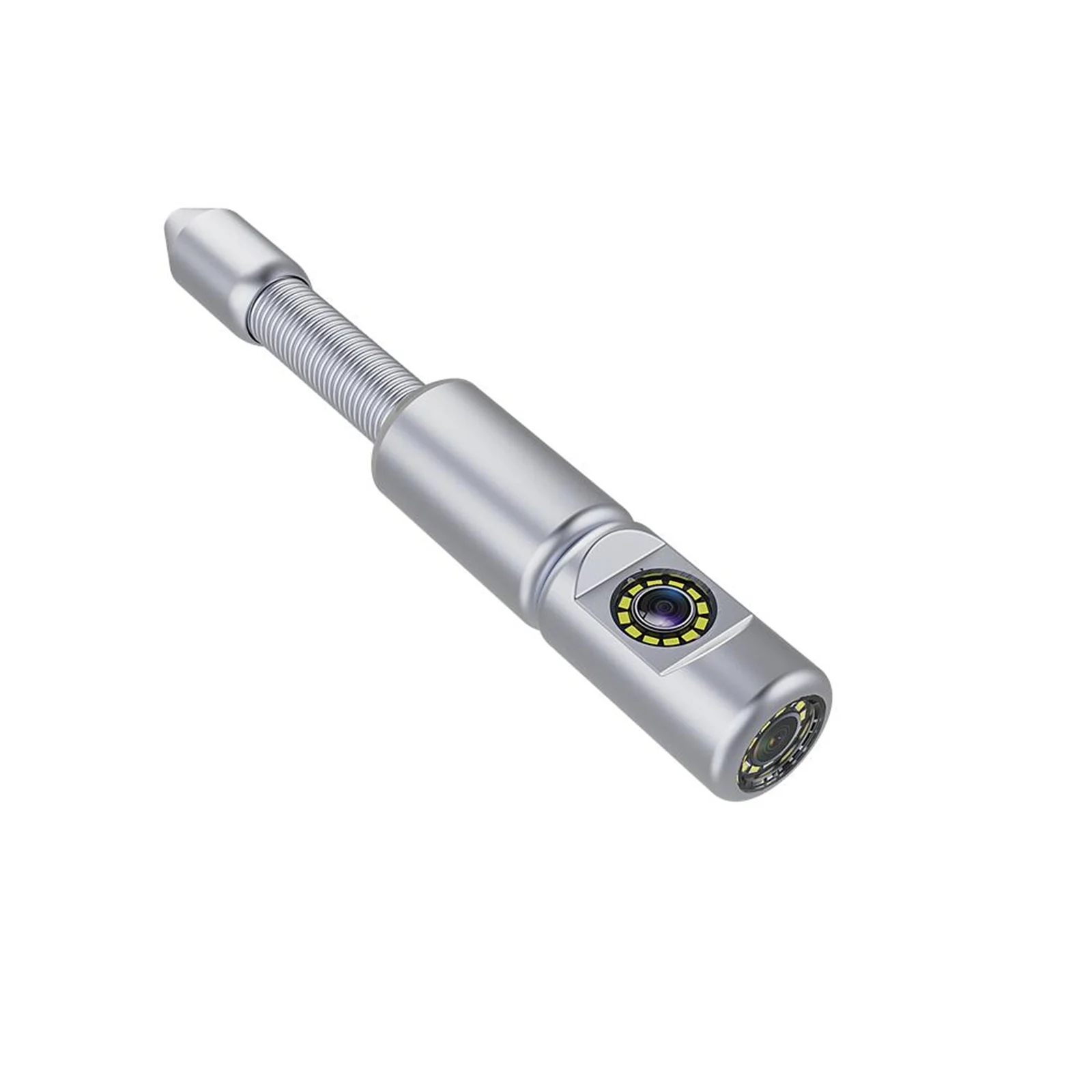

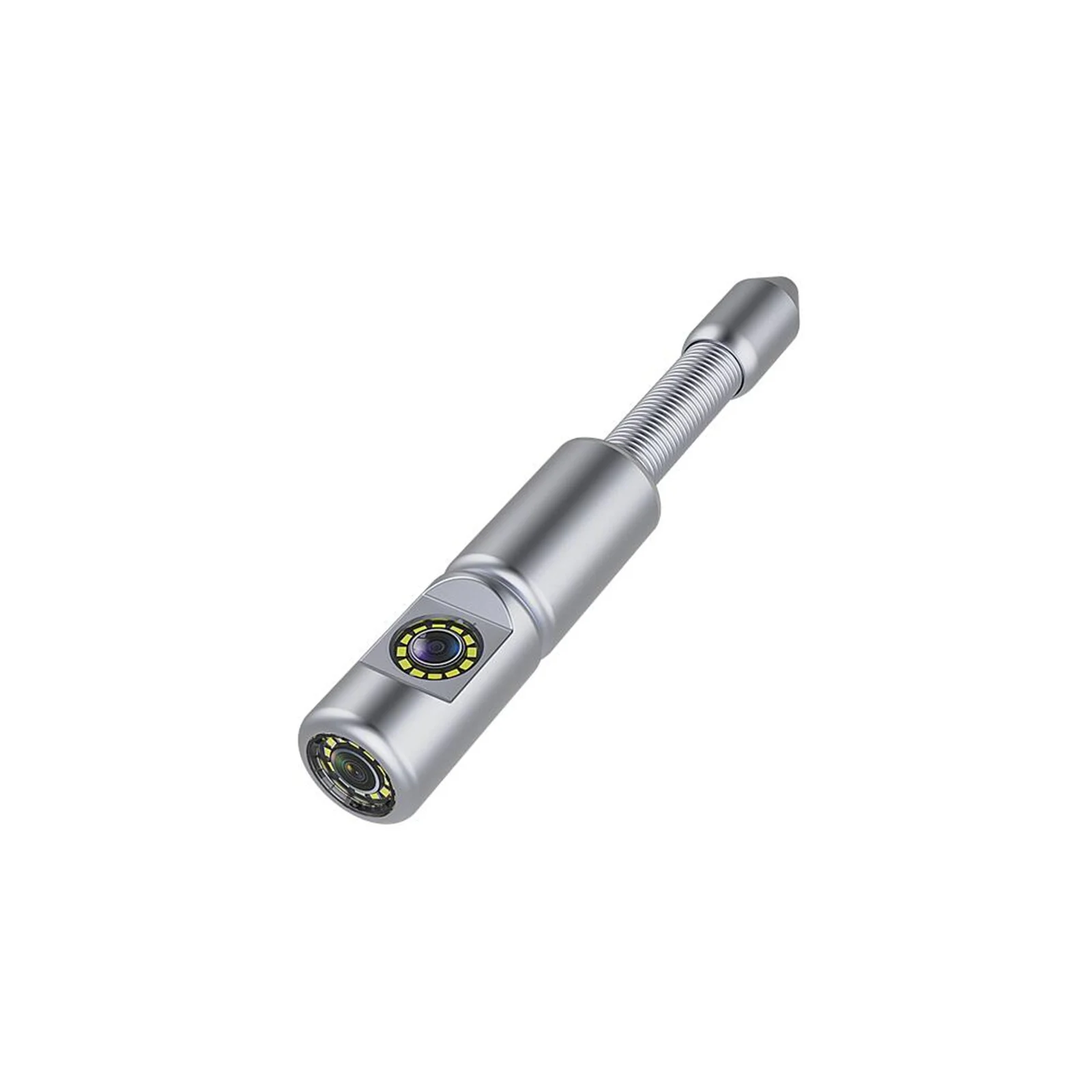

5. Camera :AHD 1080P 360 degree rotation camera head, Pan 360°

8. Charger: AC100-240V DC12.6V

9. Built in 12V4500mA li-ion battery inside ,support uint working more than 6 hours

10. Continuous use time for battery: approximate 8h

11. investigation depth: 50M/80M/100M( selectable line length)

12. Material: fiber tube with /high intensity

13. Camera light source: 12 PCS LED with high while light(adjustable)

14. Camera viewing angle: 145°

15. Lens Mirror Material : Sapphire

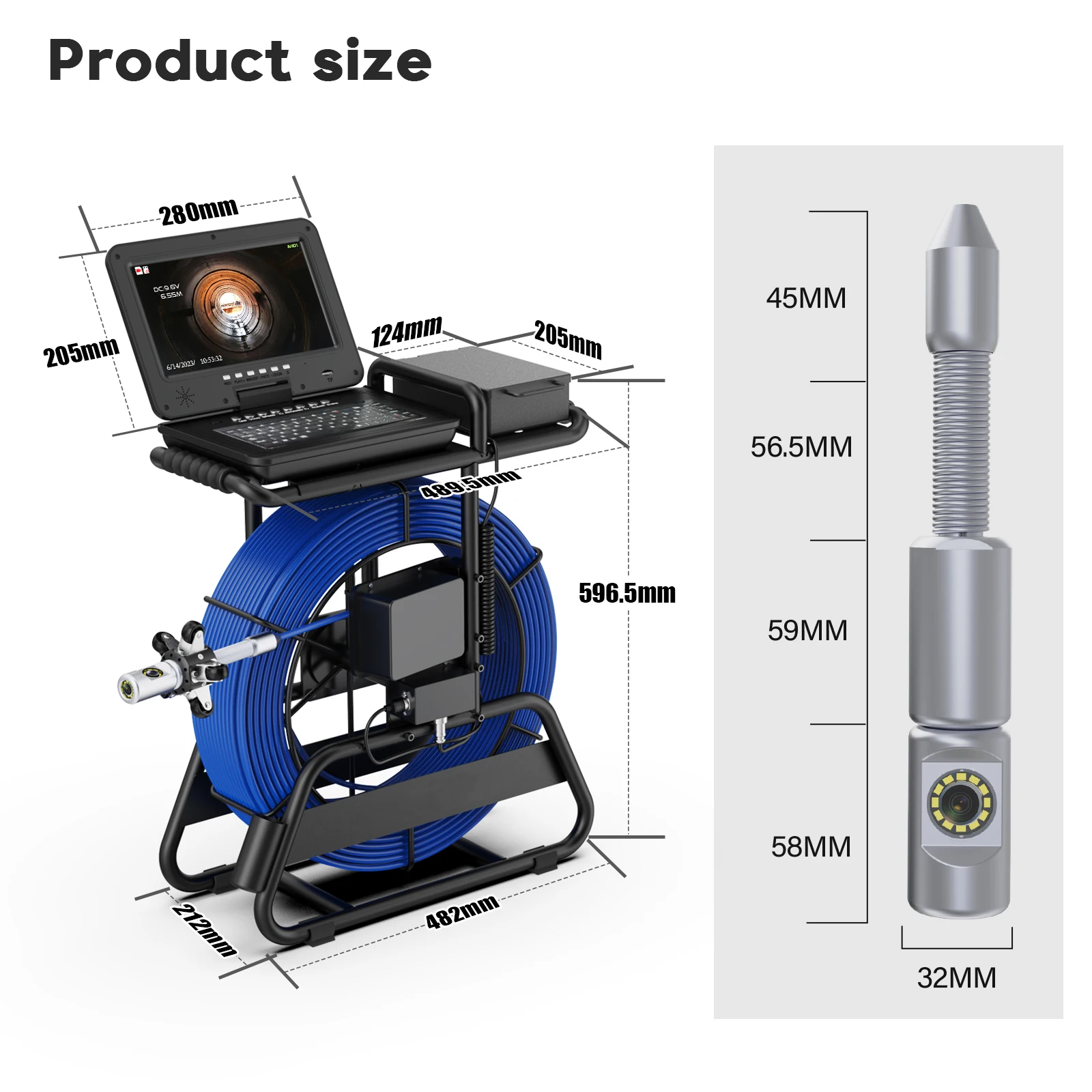

16. Camera size/material: 32MM* 120MM /stainless steel

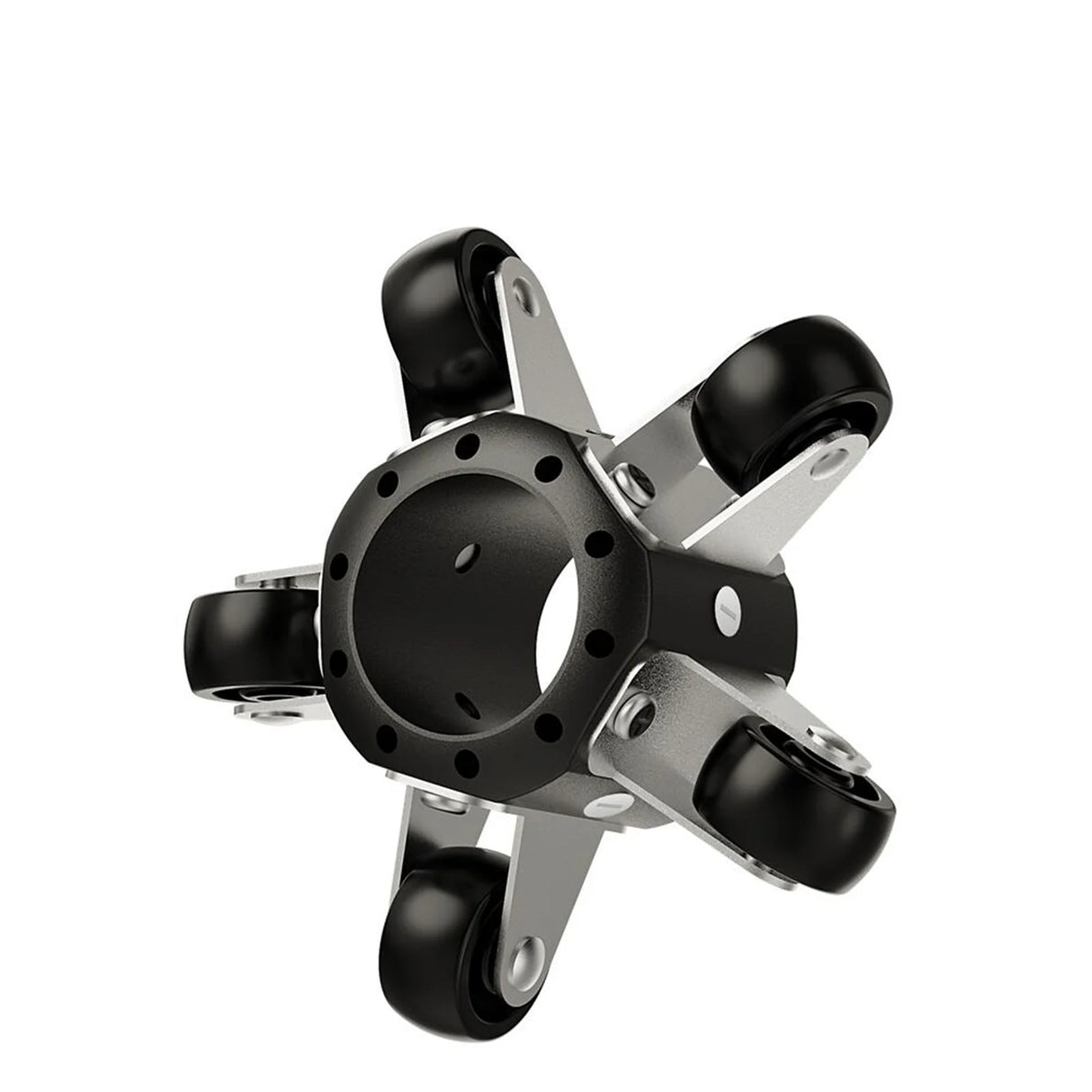

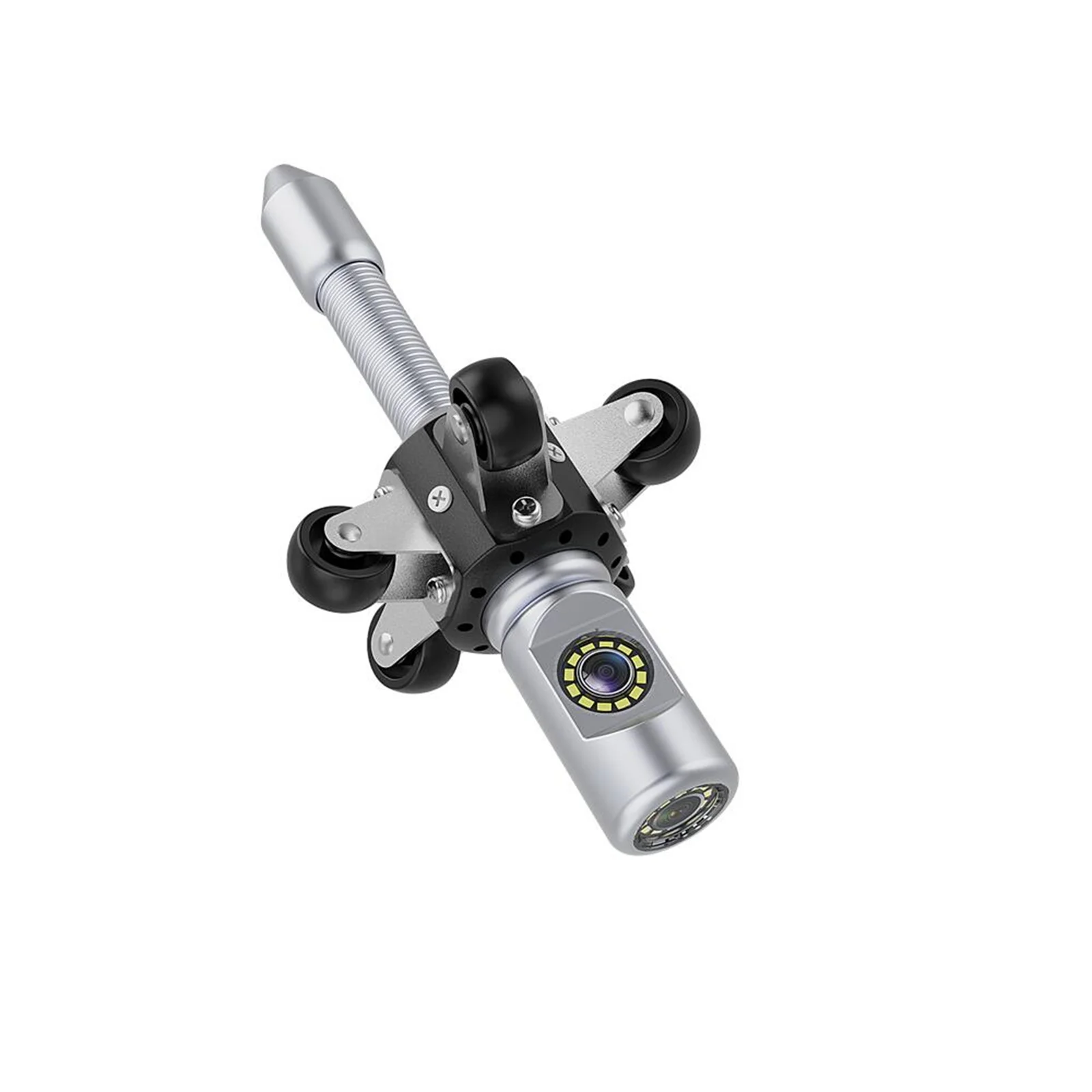

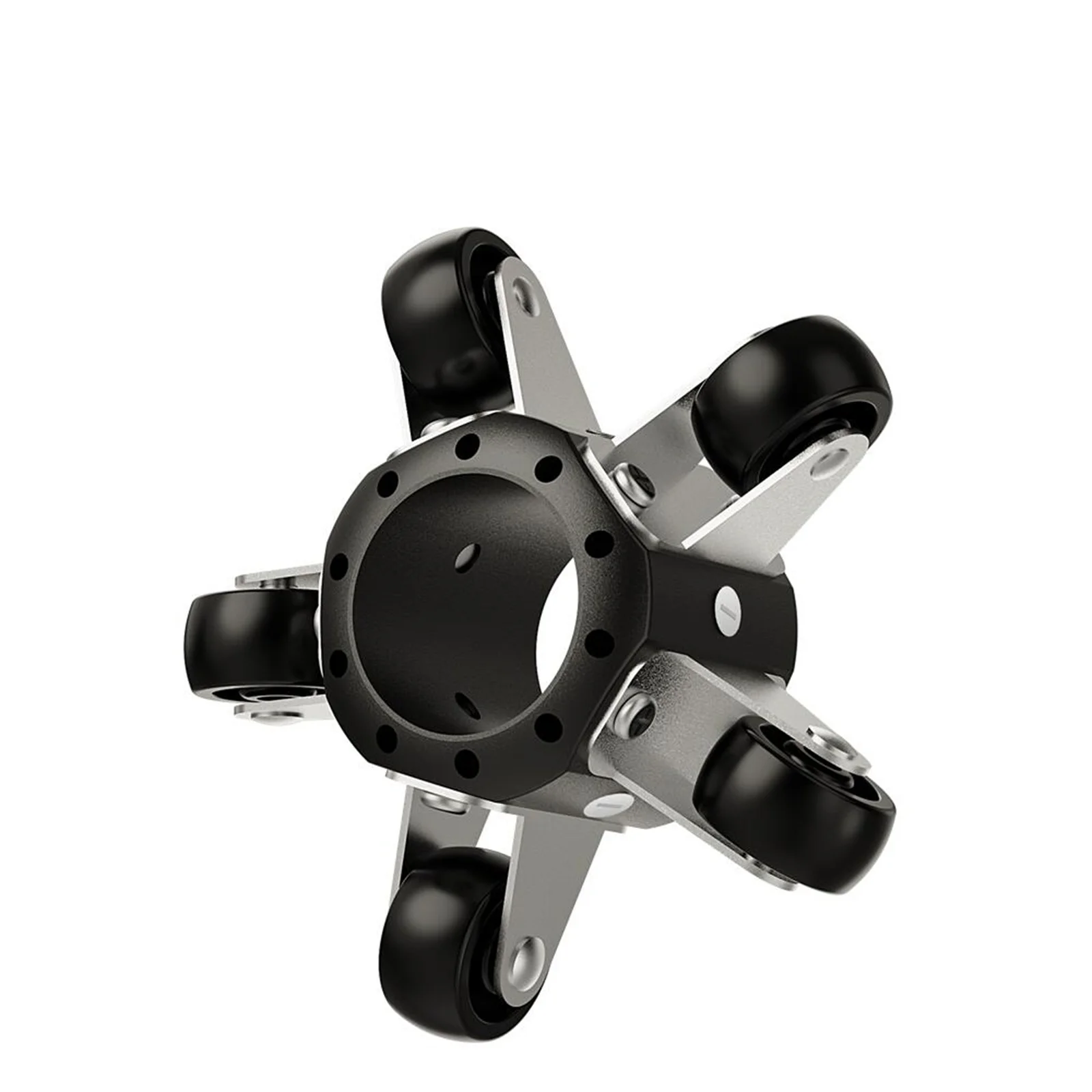

17. Camera Skids :45MM* 108MM /plastic-steel

19. Camera picture: color

20. Equipment is suitable for 150MM or above diameter pipe

Waterproof/360°PANNING NIGHT VISION TRANSMITTER:

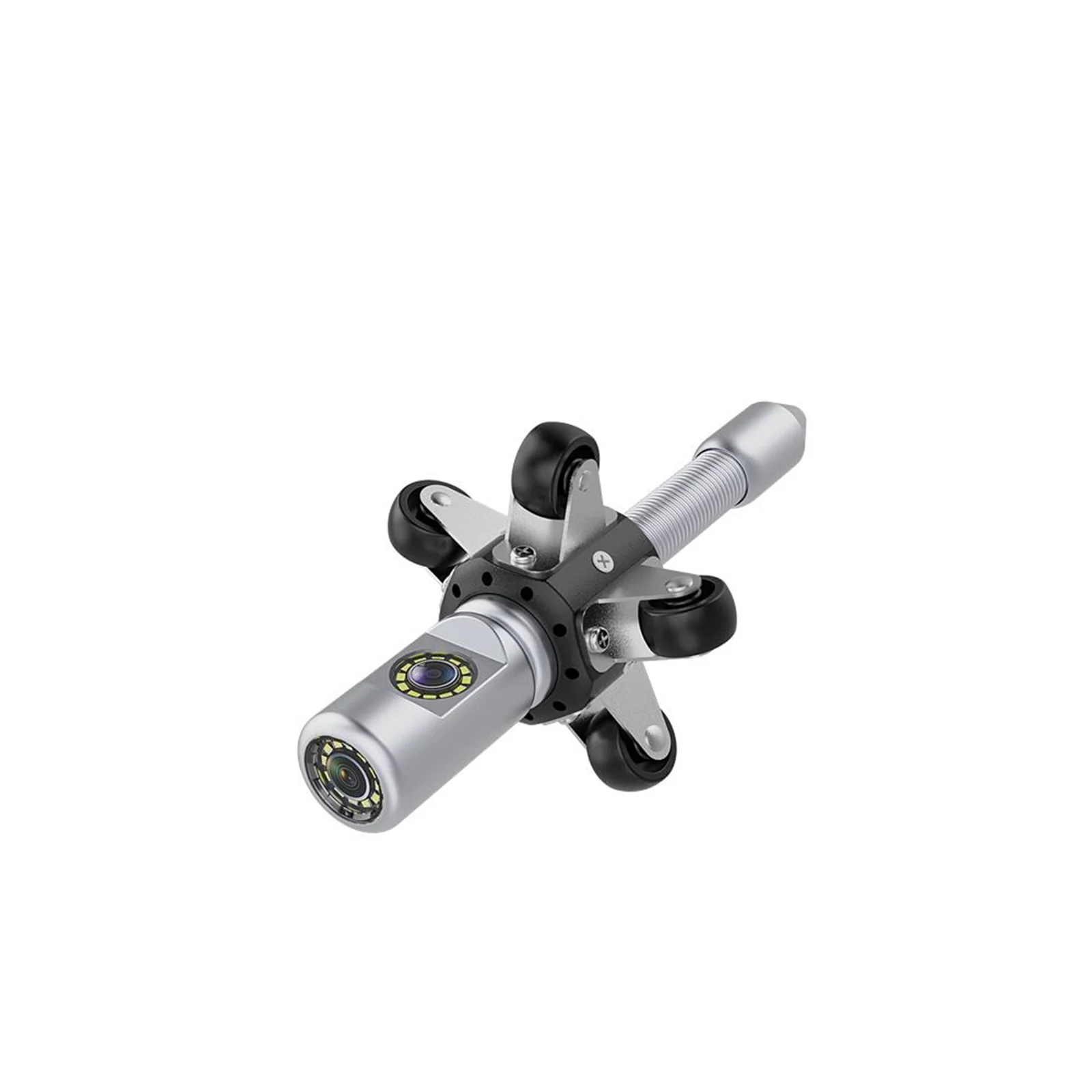

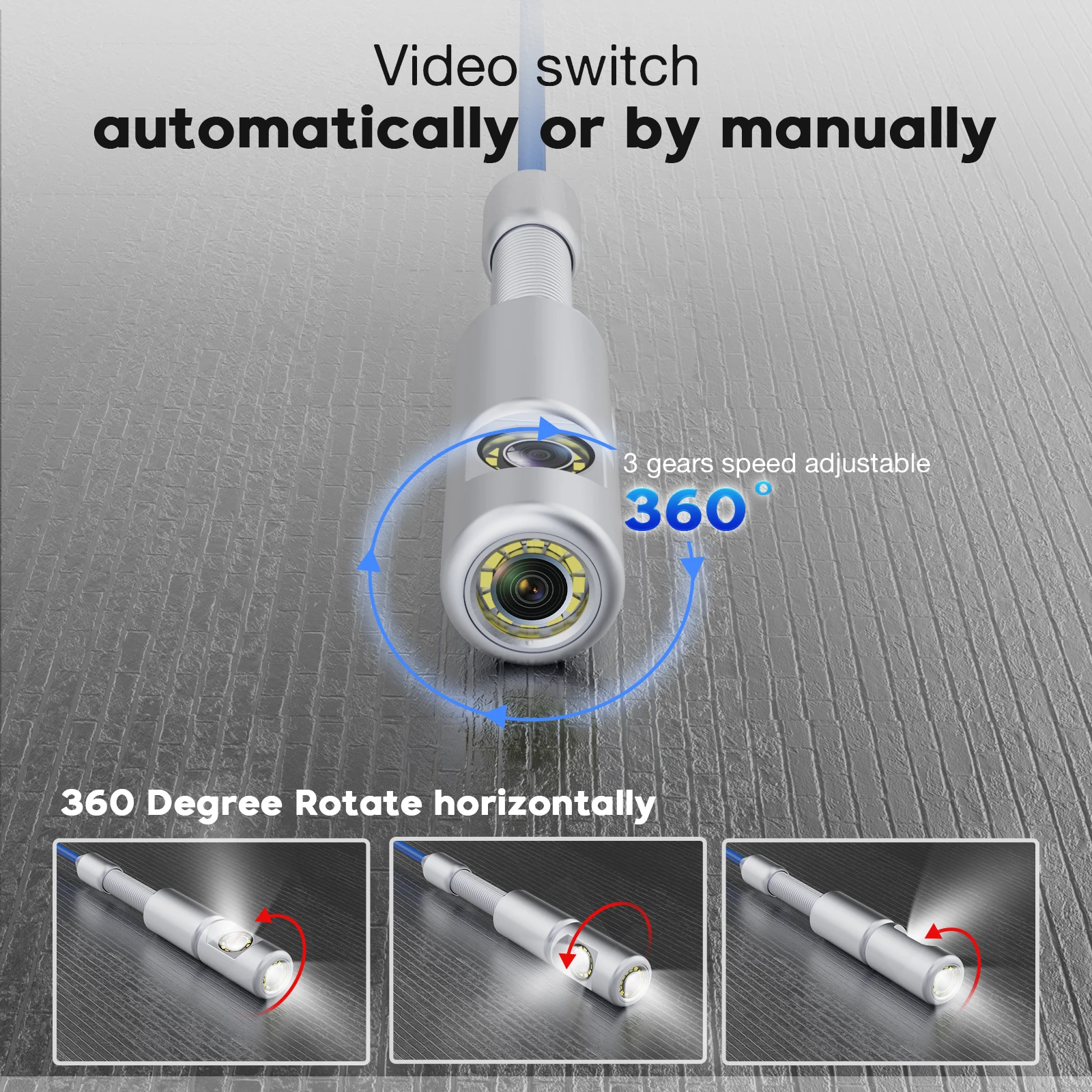

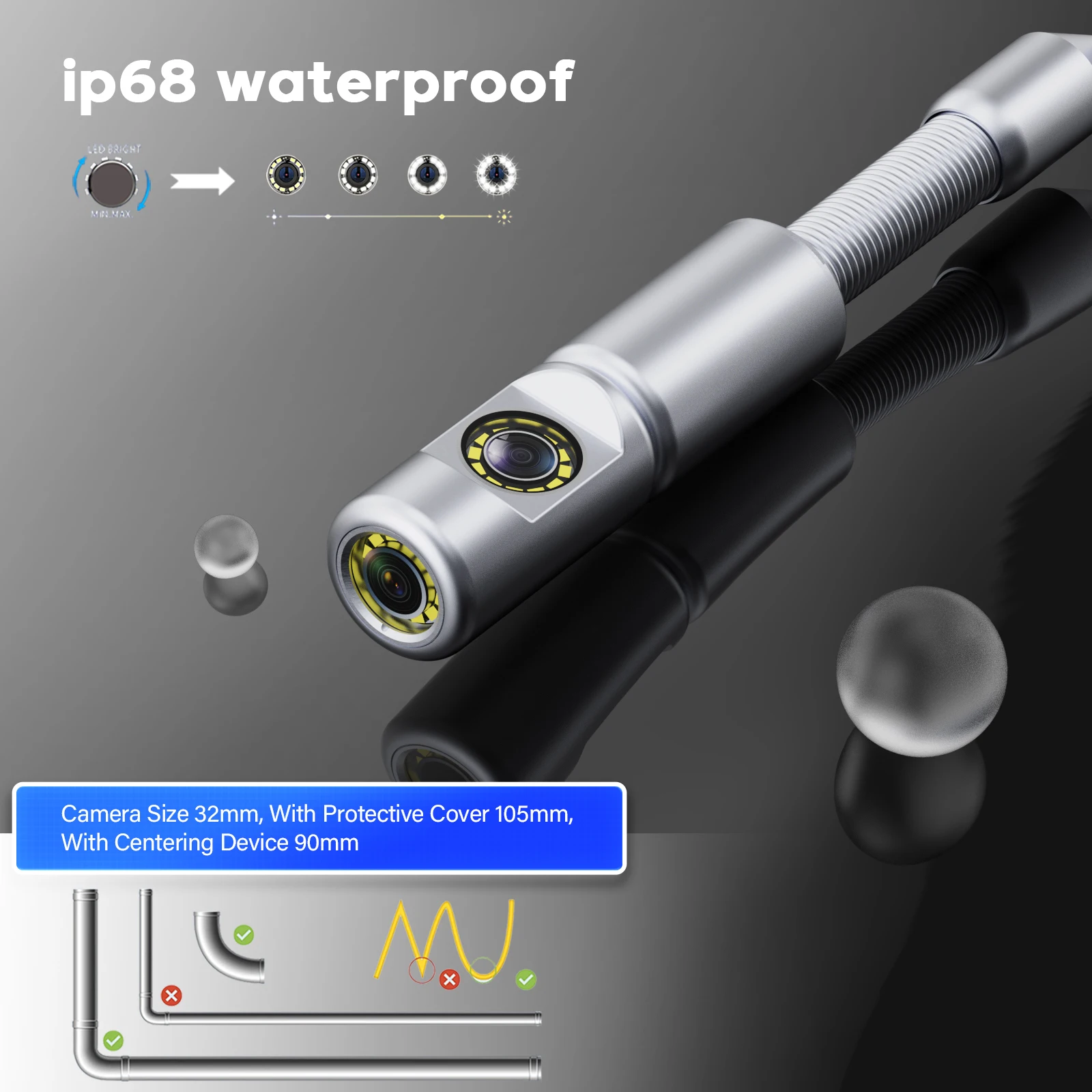

This device is equipped with dual lens, one camera is front camera , the other camera is 360 degrees rotate camera, the video can be switched, built-in 512HZ transmit, IP68 waterproof, with 12 LED brightness adjustable,you can observe the pipe from different viewing positions.

MONITOR&CABLE：

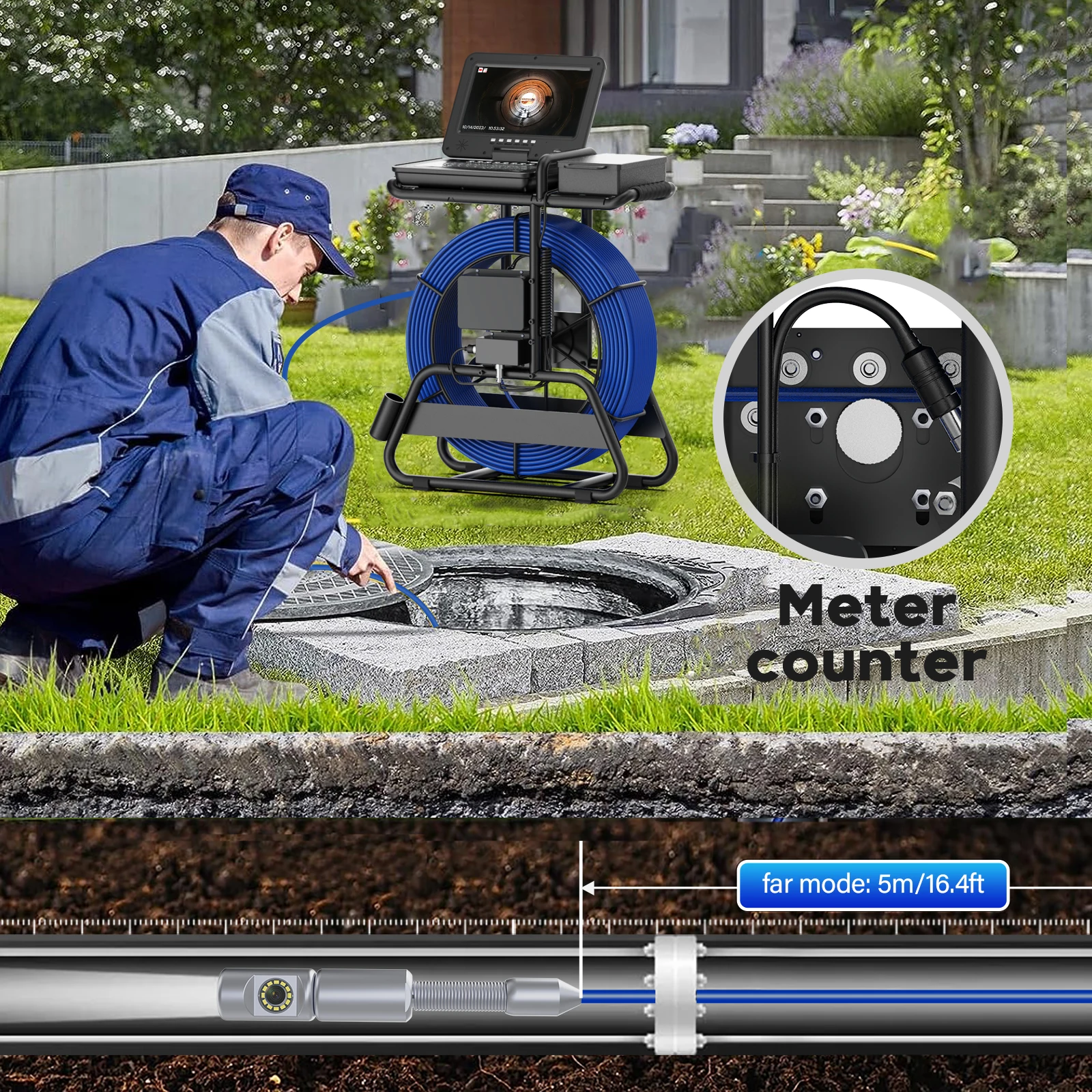

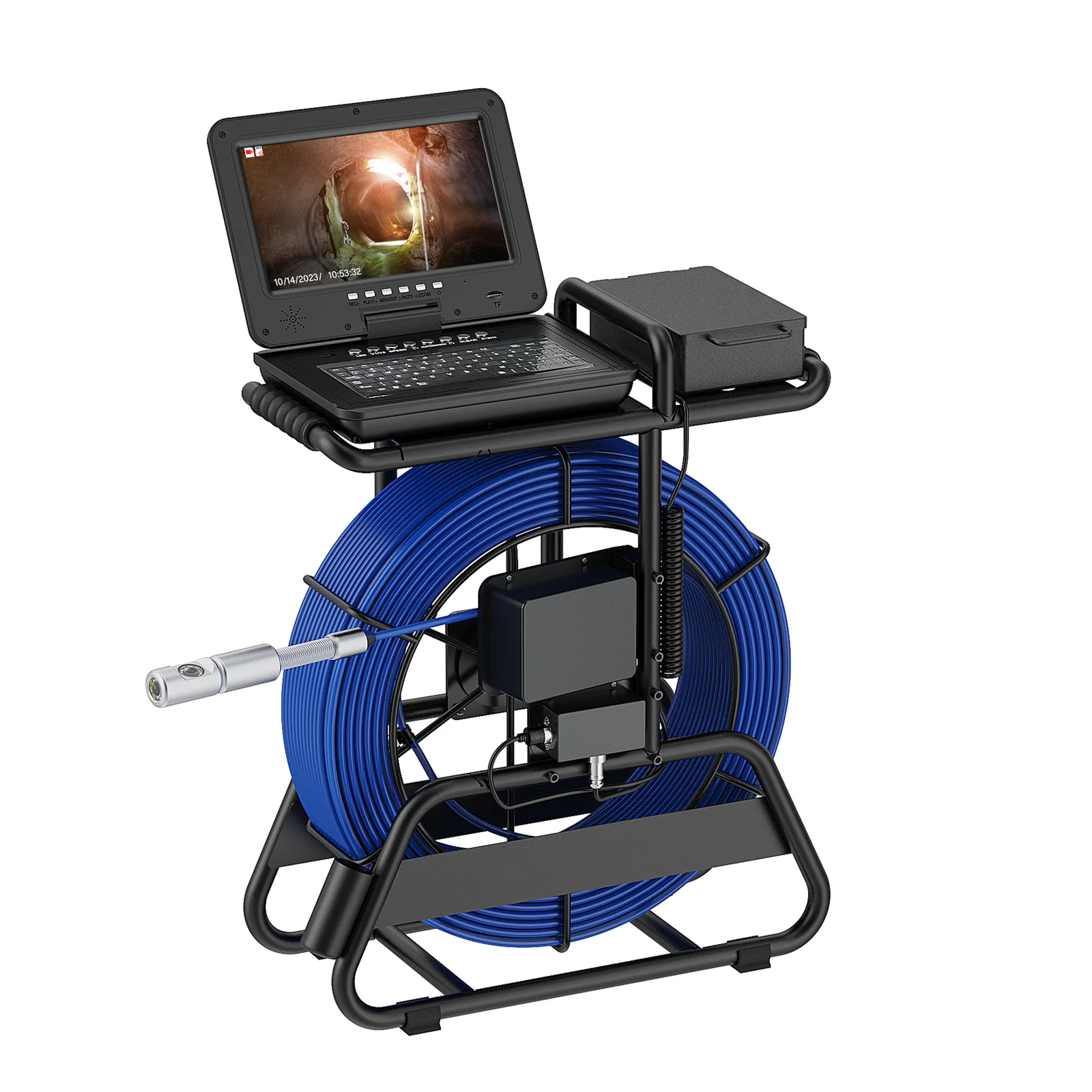

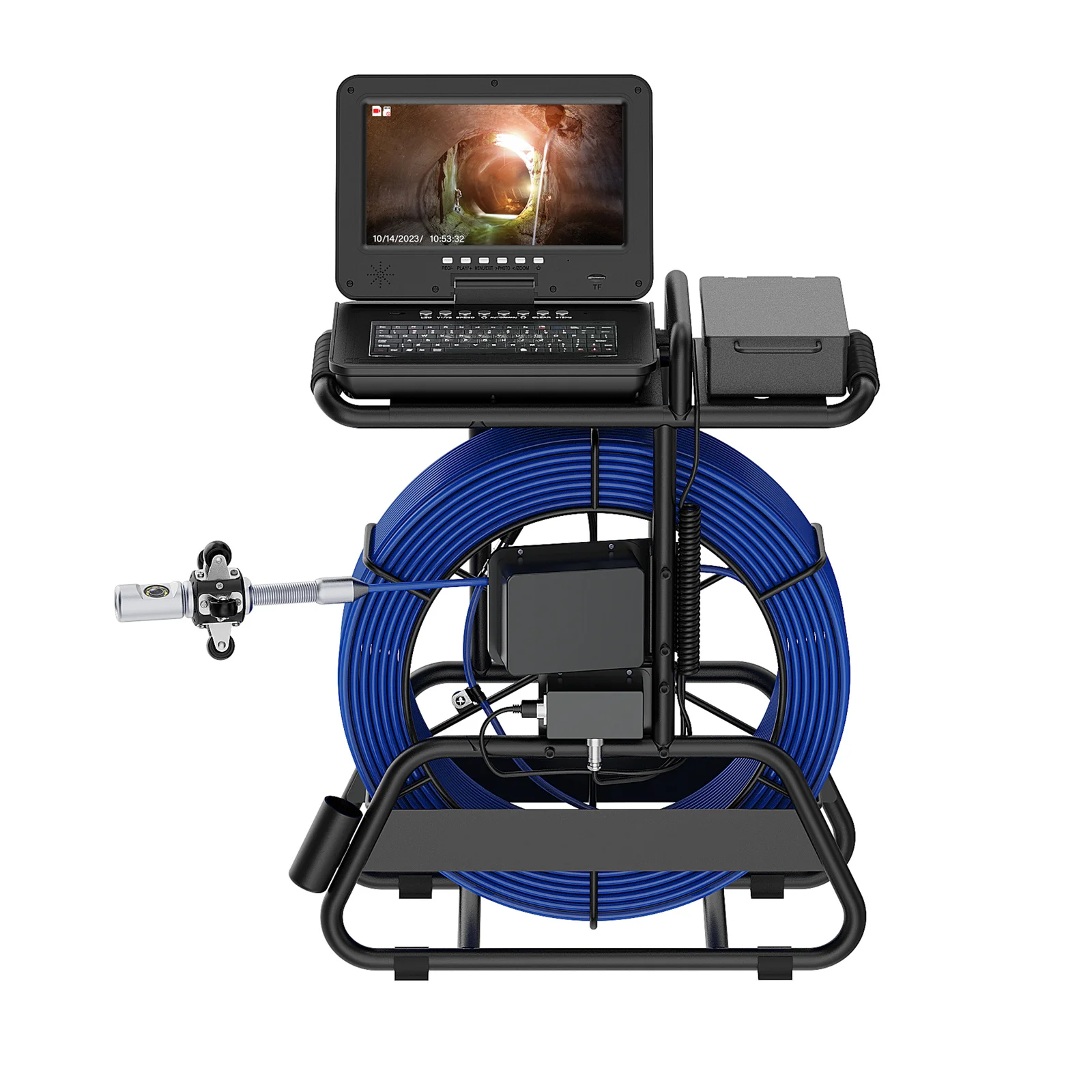

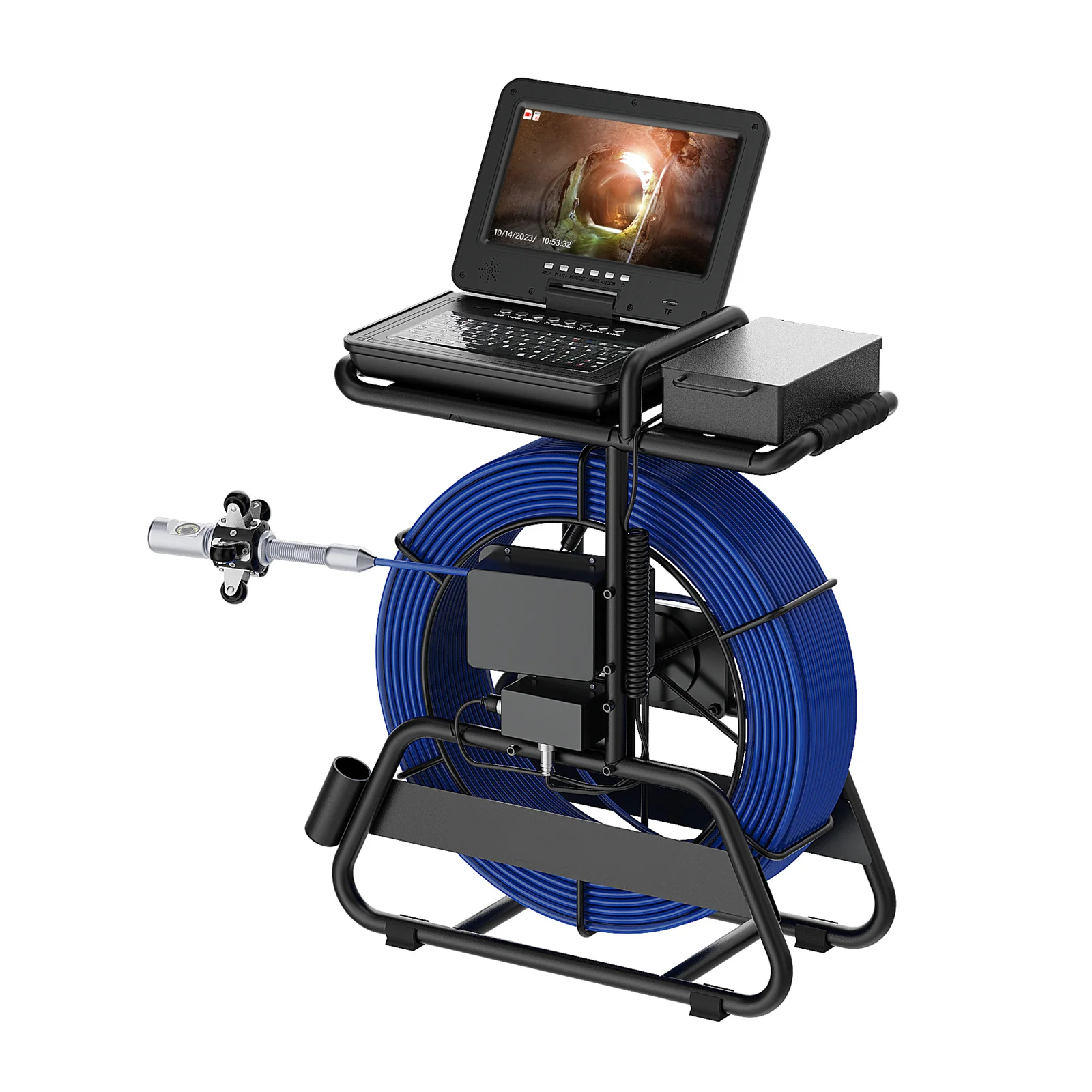

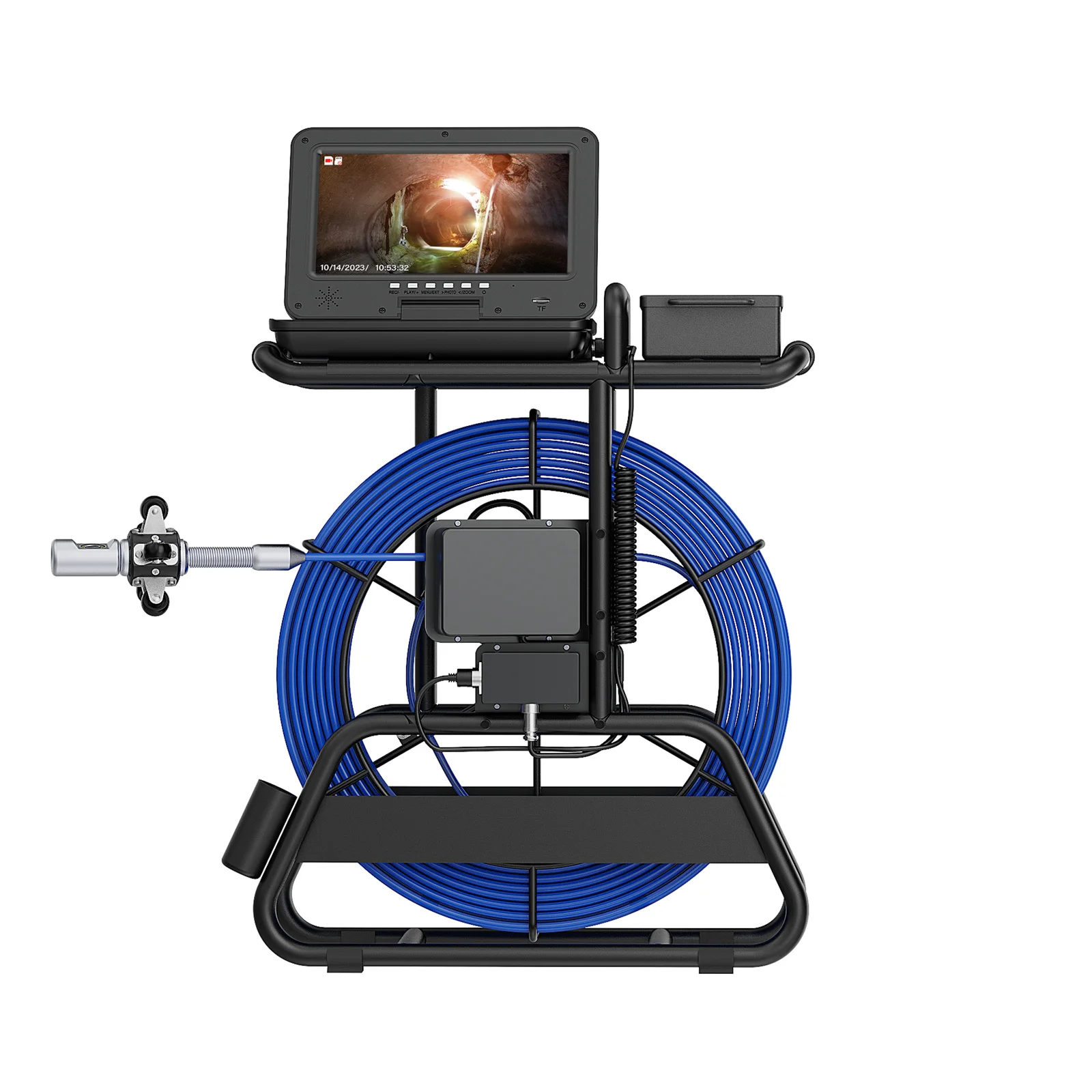

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10 inches color IPS LCD monitor with a sun-visor for outdoor inspections.The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.

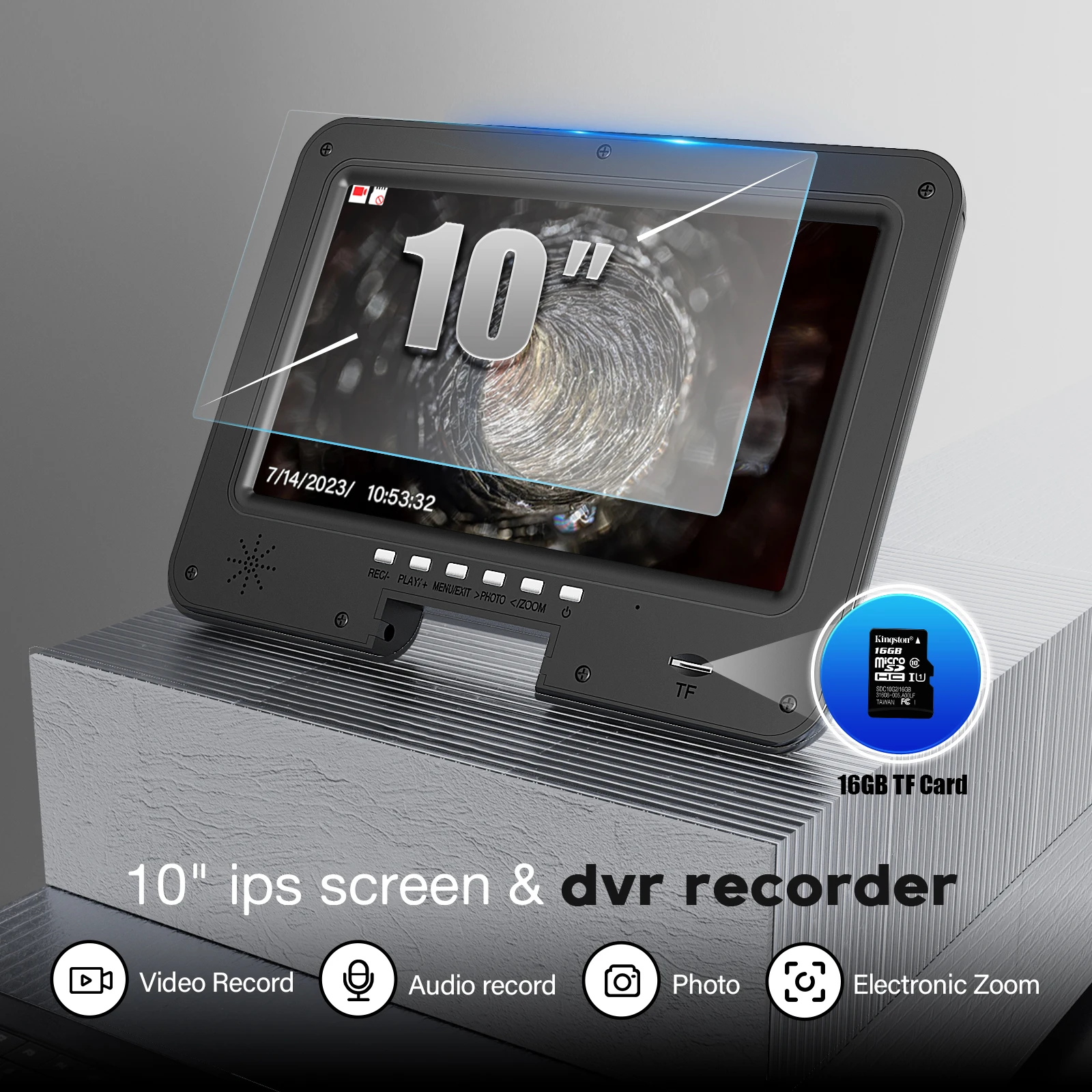

DVR Recording Function：

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB SD card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

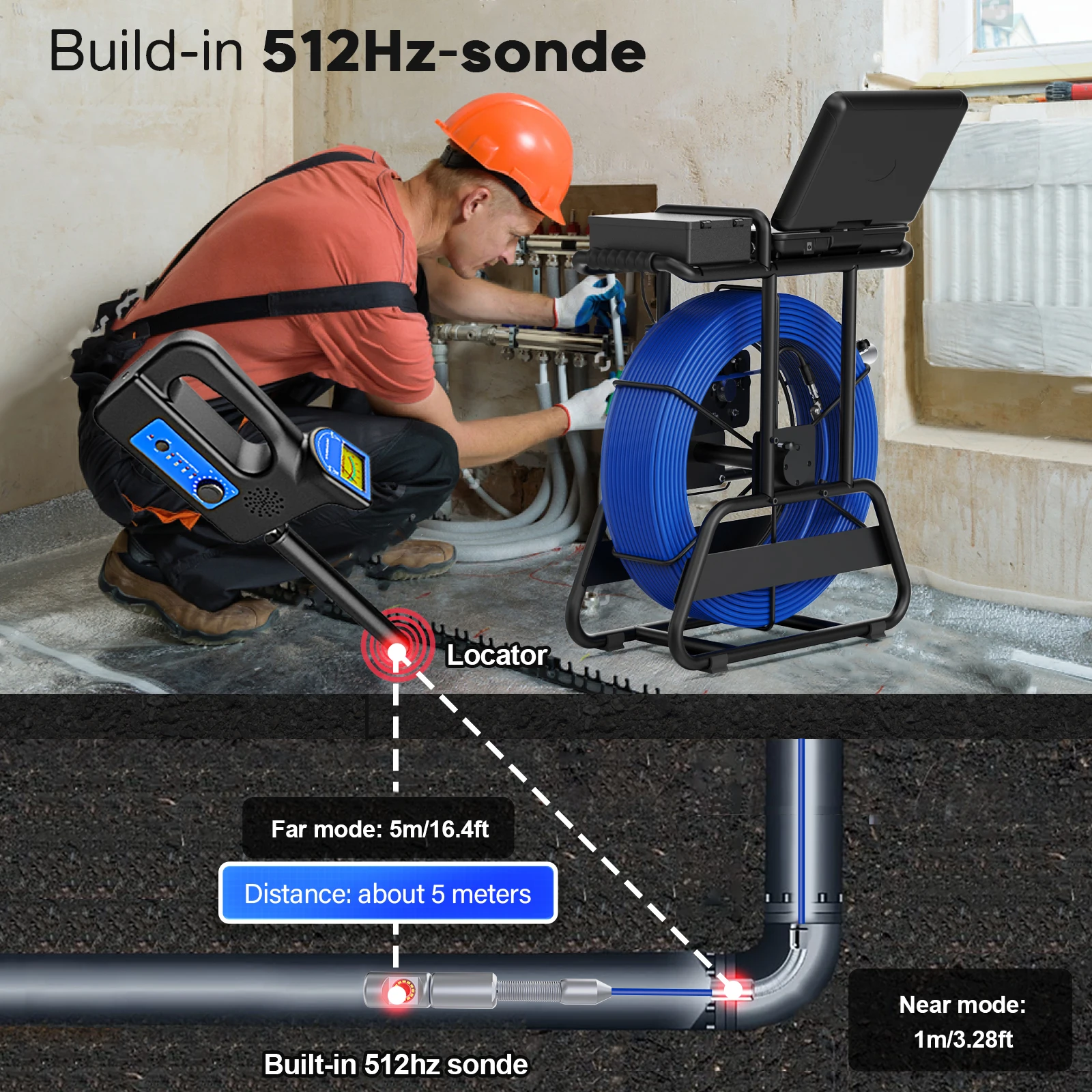

512HZ TRANSMITTER:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground.Locator Receiver is NOT included）

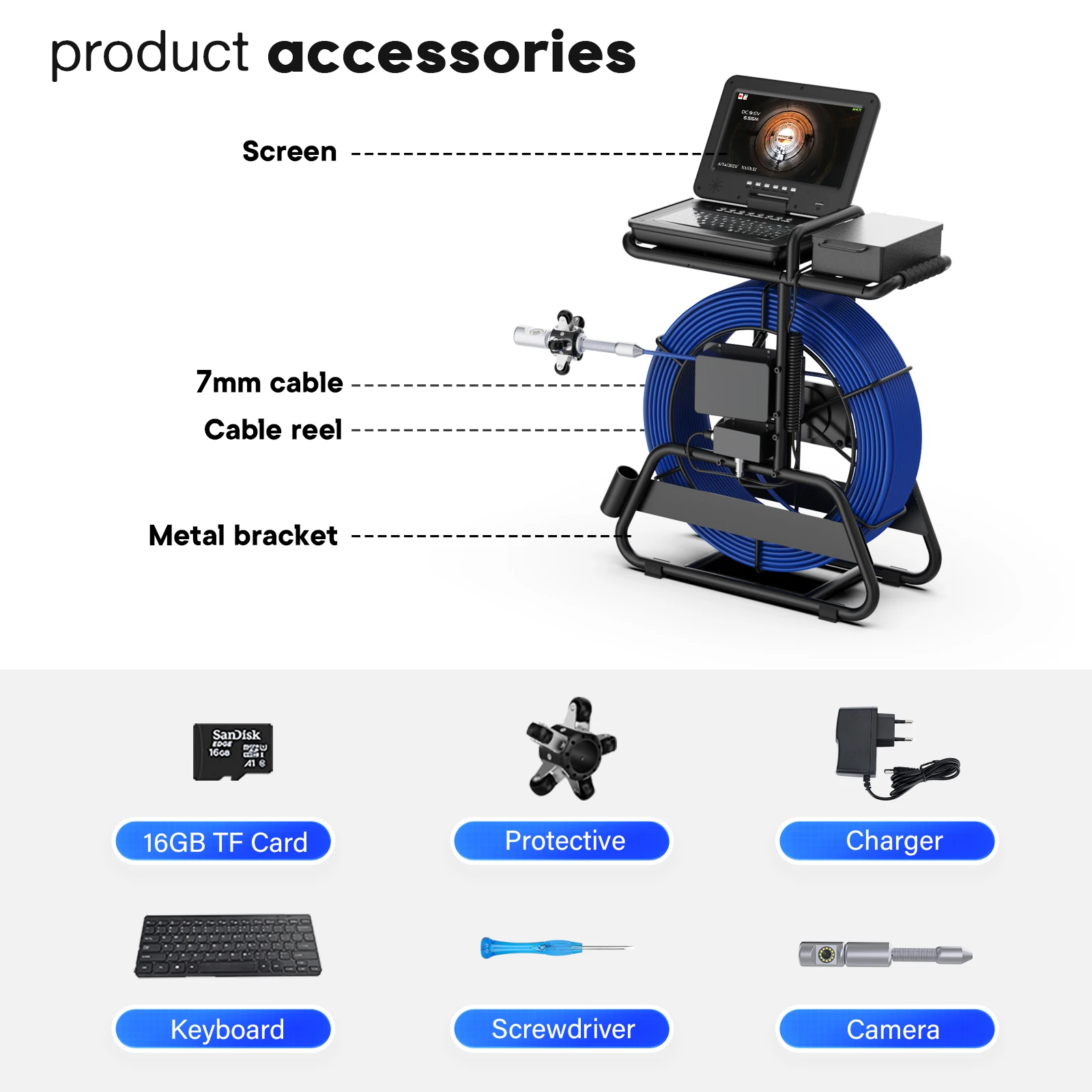

Package List:

1 * 10inch IPS Monitor（DVR)

1 * Camera ( 360 degrees rotate camera )

1 * 16GB TF Card

1 * 80M Fiberglass Cable(Cable diameter ø7mm)

1 * Camera Proof Cover

1 * 4500mah Battery Box

1 * Charger

1 * Connection Cable

1 * Screw Driver

1 * User Manual (English)
