SPECIFICATIONS

Brand Name: MAOTEWANG

Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee,None

High-concerned chemical: None

Model Number: F69

Origin: Mainland China

Screen Type: 4.3inch

9 inch Waterproof Meter Counter DVR Drain Sewer Inspection Video Endoscope Camera Borescope camera with and Self-Leveling 512HZ Locator / 23mm camera

METER COUNTER:

Simultaneous display/cleared Metric and Feet.

512HZ  TRANSMITTER And Self-Leveling Camera:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest.  This greatly helps save time from having to dig and locate the problem.              The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground.  （Locator Receiver is NOT included）

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.     You can record the inspections and playback via the pipe system.   （DVR Edition Video Format :AVI  Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

MONITOR&CABLE：

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inch es color IPS LCD monitor with a sun-visor for outdoor inspections.   The material of wire is fiberglass rod(diameter: 5MM),anti-corrosion/cold/tensile.

DVR Recording Function：

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB card included,it is avialiable to view live video and save video recording and photos and audio record.    You can record the inspections and playback via the pipe system.  （DVR Edition Video Format :AVI  Photo format :JPG)

Portable adjustable stand with battery：

Comes with bracket and accessories box,more convenient to use.      12V 4500mAh lithium battery can work about 8 hours

Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.

Item: parameter

1. Monitor:9 inch IPS color record monitor

2.   TF Card: Memory Support maximum 128G TF card(16G TF card included)

3.512hz:Built in 512hz transmitter

4.   Camera :Auto Self Leveling AHD 1080P

5.   Charger: AC100-240V   DC12.6V

6.   Battery: Luminal-cell arrester 4.5AH

7.   continuous use time for battery: approximate 8h

8.   investigation depth: 20M( selectable line length)

9.   material: fiber tube with /high intensity

10.   camera light source: 12 PCS LED with high while light(adjustable)

11.   camera viewing angle: 145°

12.   Lens Mirror Material : Sapphire

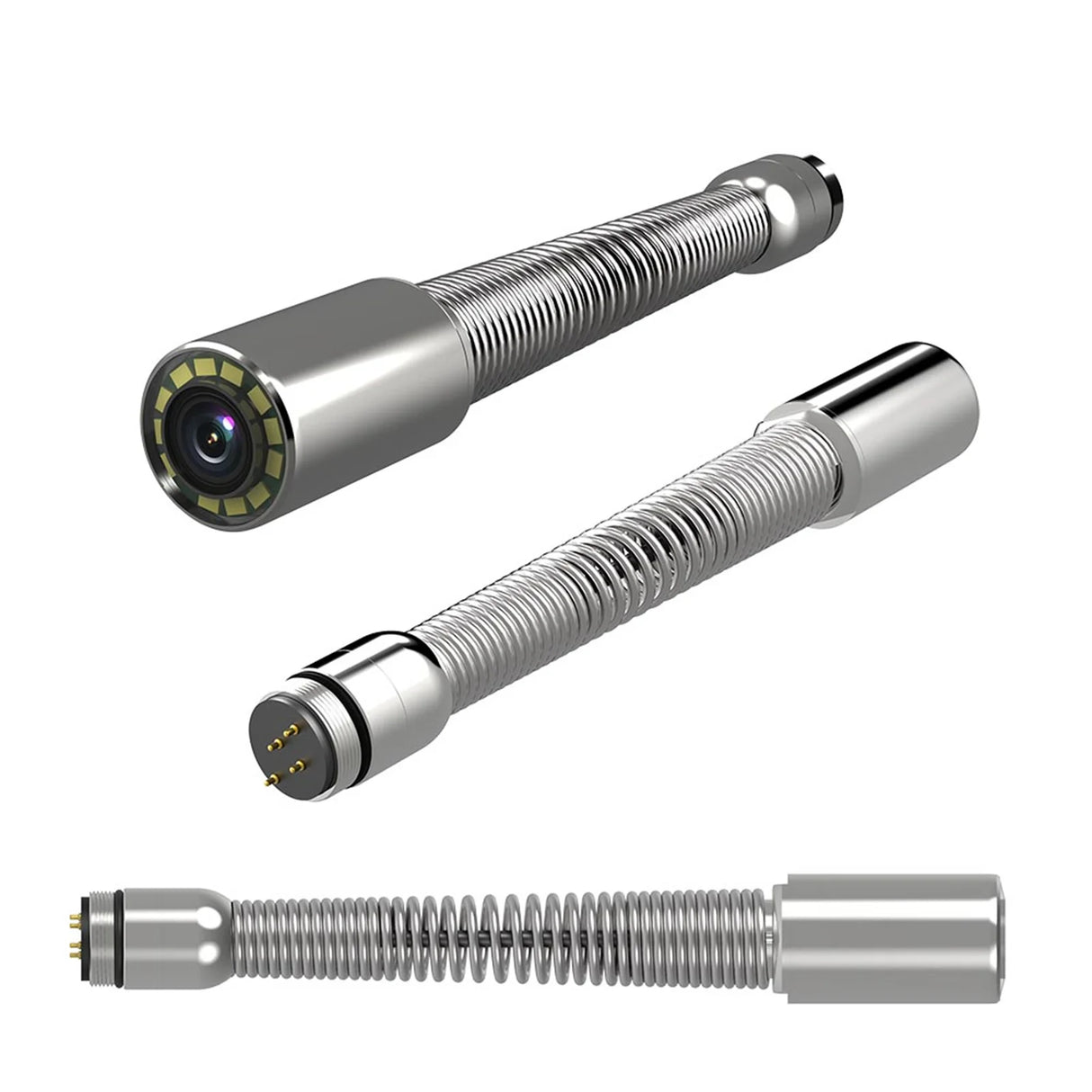

13.   camera size/material: 23MM* 40MM /stainless steel

14.   camera protective cover parts size/material:38MM* 28MM /plastic-steel

15. camera protective cover parts size/material:99MM* 45MM /plastic-steel with wheel

16.   camera picture: color

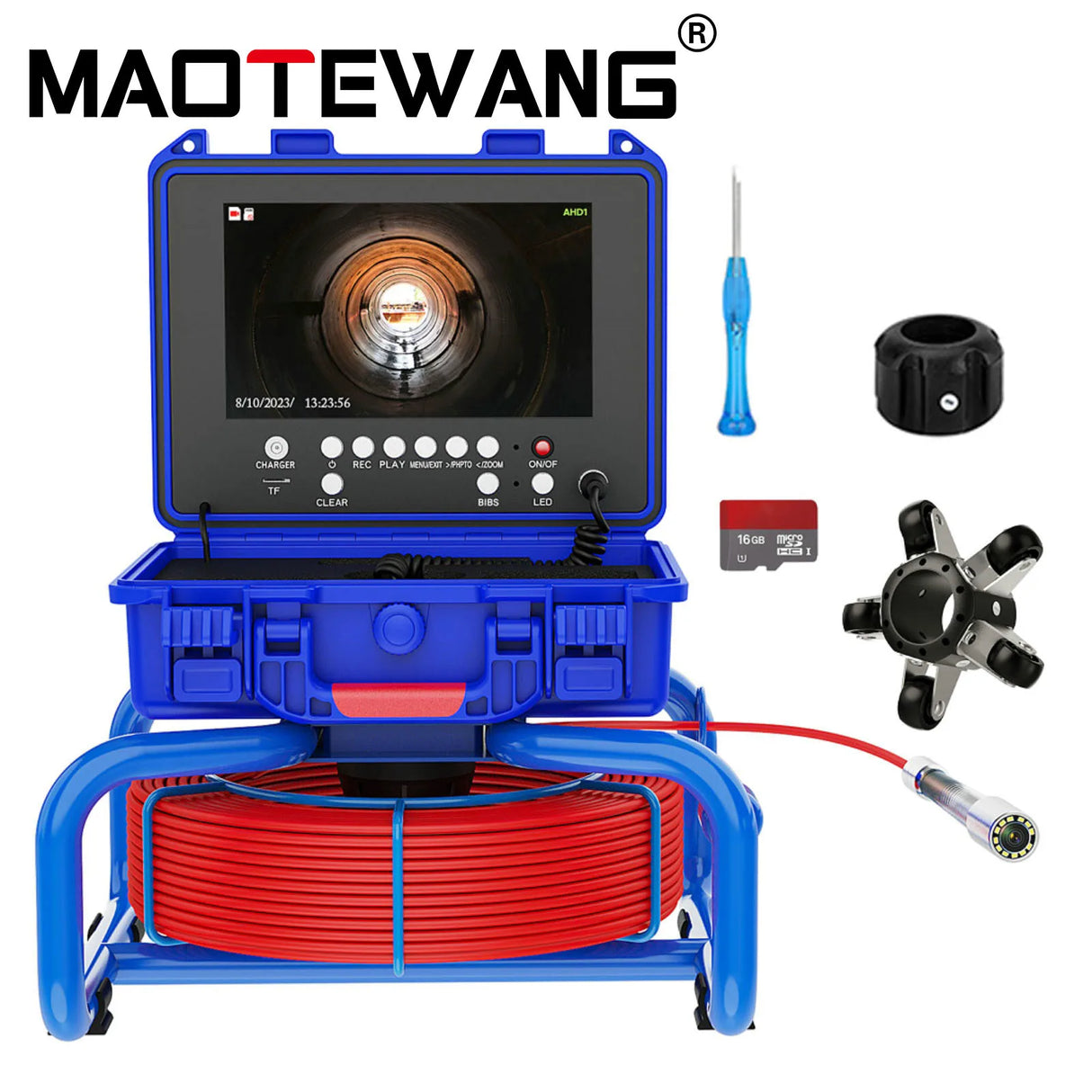

Package List:

1 * 9 inch IPS Monitor（DVR+Built in 4500mah)

1 * Camera (AHD 1080P Auto Self Leveling )

1 * 16GB TF Card

1 * 20M Fiberglass Cable

2 * Camera Proof Cover

1 * Charger

1 * Connection Cable

1 * Screw Driver

1 * User Manual (English)
